SMART SHIRT FOR COAL MINERS

Published Sep 19, 2022

Apache-2.0

7 hours to build

Beginner

arduino

Work clothing that has sensors embedded in it to securely transmit data to managers about hazardous conditions and the workers’ physical conditions, improving safety overall

Components Used
MQ4 Gas Sensor MQ4 is a gas sensor used for detecting methane and natural gas.	X 1

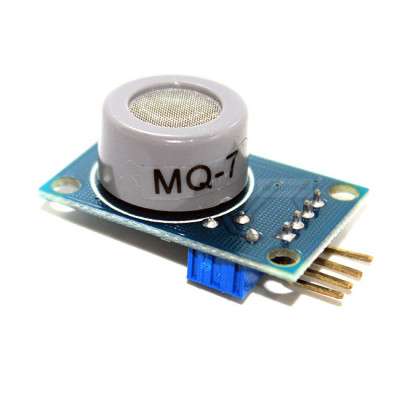

MQ7 Gas Sensor MQ7 is a gas sensor used for detecting carbon monoxide.	X 1

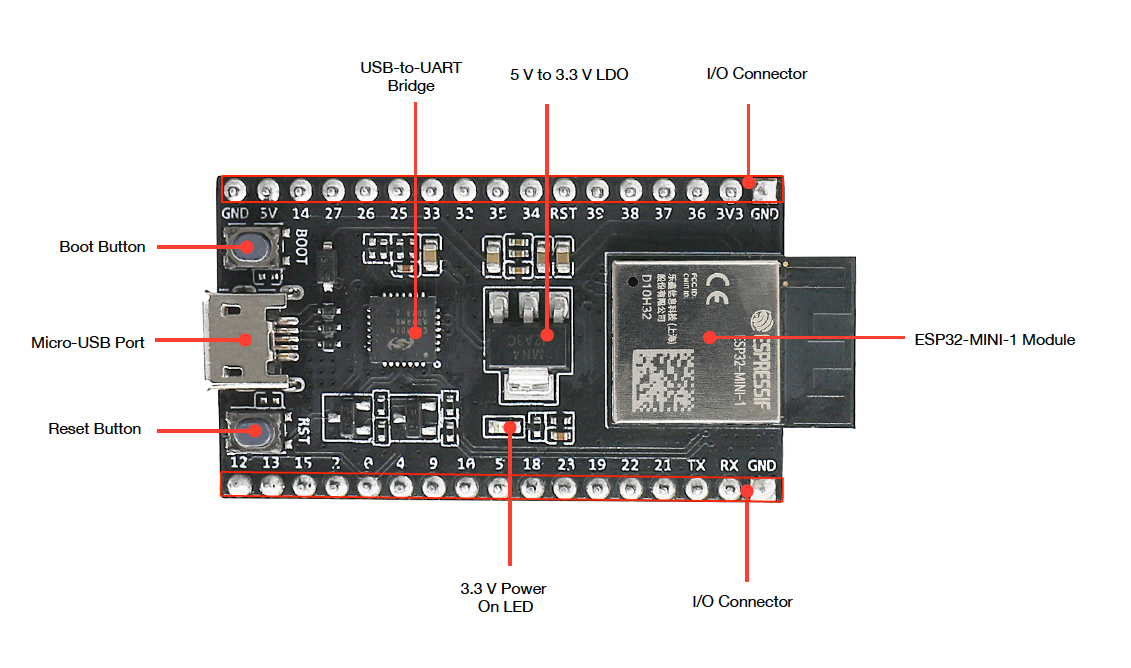

ESP32-DevKitM-1 ESP32-DevKitM-1	X 1
Pulse Sensor Amped Pulse Sensor Amped	X 1
Mini Push Button Switch - 5-6mm Mini Push Button Switch - 5-6mm	X 1
7805 Voltage Regulator 7805 Voltage Regulator	X 1
GPCB PCBs & Breadboards PadBoard-3U 2 sided with plated holes	X 1
Breadboard Half Size Breadboard Half Size	X 1
Wire Hook-up Wire 788133 RED 100 FT	X 1
Male to Female Jumper Wire Jumper Wires Mach pin jumper wires	X 1
Male to Male Jumper Wire Jumper Wires Mach pin jumper wires	X 1
Female to Female Jumper Wire Jumper Wires Mach pin jumper wires	X 1
Micro USB Cable USB Cables / IEEE 1394 Cables 3FT STRONG MCROUSB-B/USBACBL	X 1
9V Battery Consumer Battery & Photo Battery 9V RECTANGLE	X 1

Description

Smart Work Vest

If an alert is to be issued, it is first done by LED and/or Buzzer, then the main control Server page is also updated.

Detection

Each Sensor embedded on this vest will take reading and immidately syncs the data with the server.

Alert System

If an alert is to be issued, it is first done by LED and/or Buzzer, then the main control Server page is also updated.

Alert System

Nearby Miners are intimidated of the situation and its details so that the response can be Swift and Appropriate.

Rescue and Help

Nearby Miners are intimidated of the situation and its details so that the response can be Swift and Appropriate.

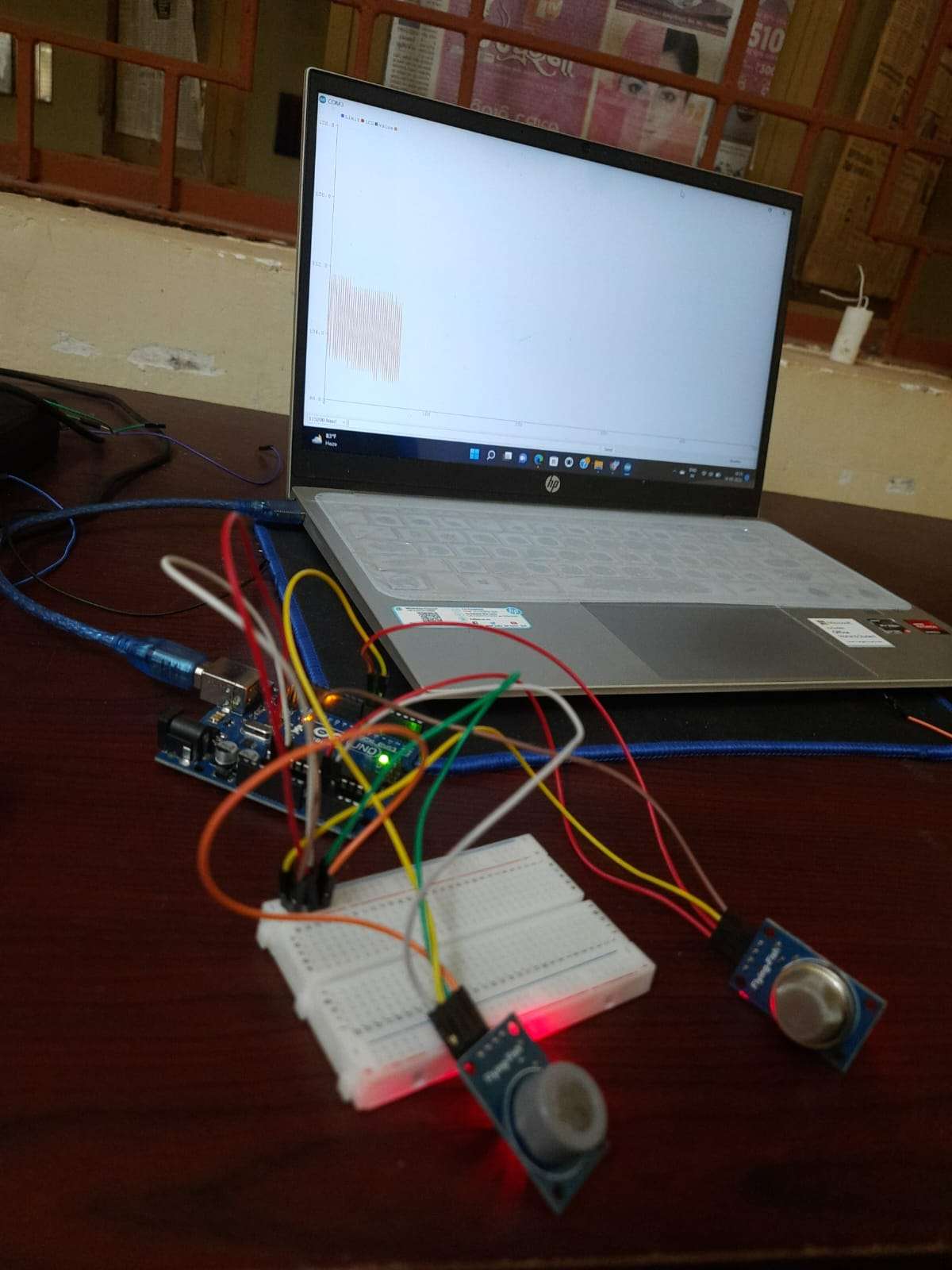

First we checked all the sensors are working perfectly or not. We started with the gas sensors mQ4 and mq7. At first we adjusted its sensitivity using the potentiometer then we calibrated the heartbeat sensor....

To provide a constant voltage we used 7805IC .

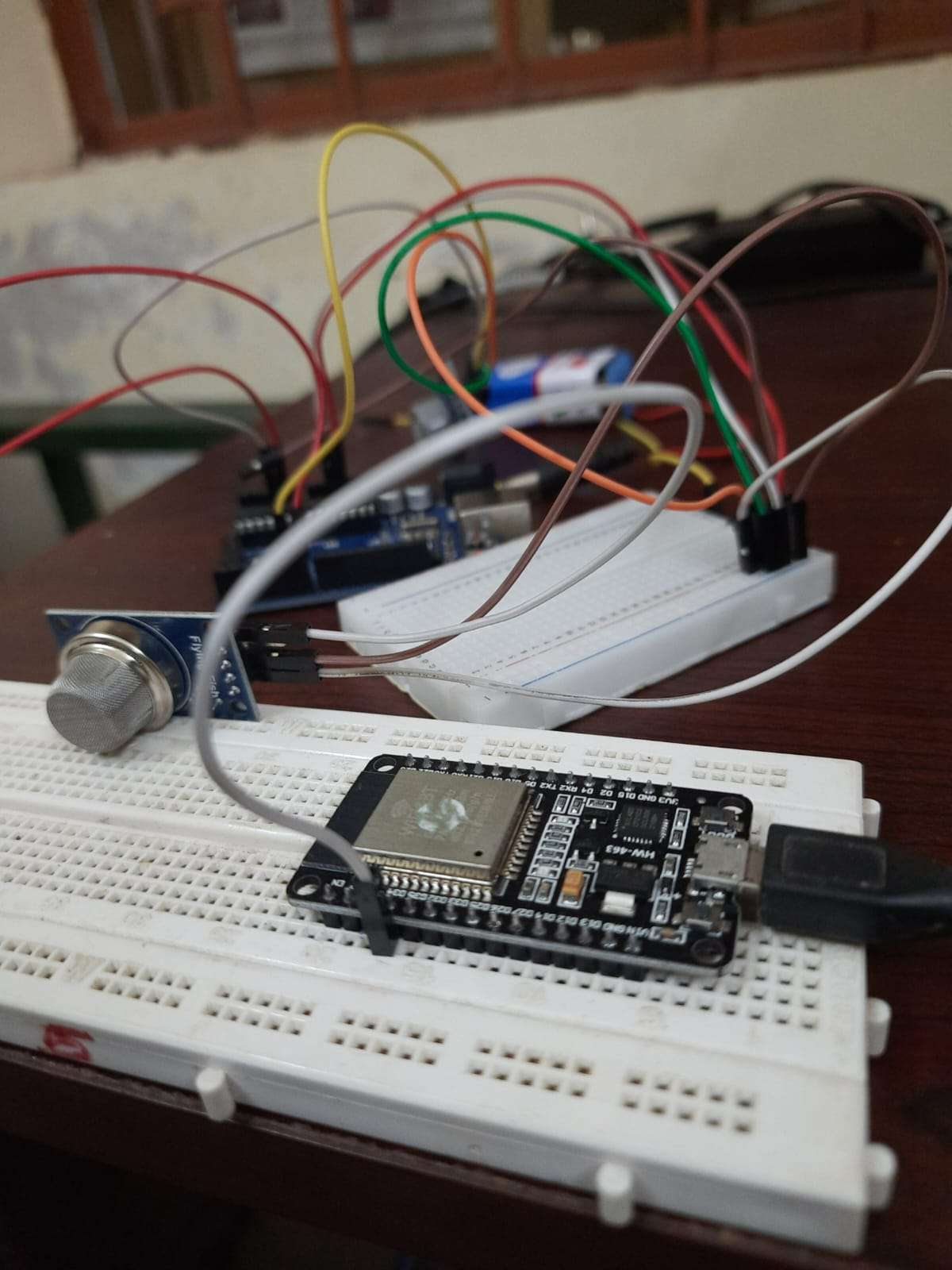

For code part we used esp32board;

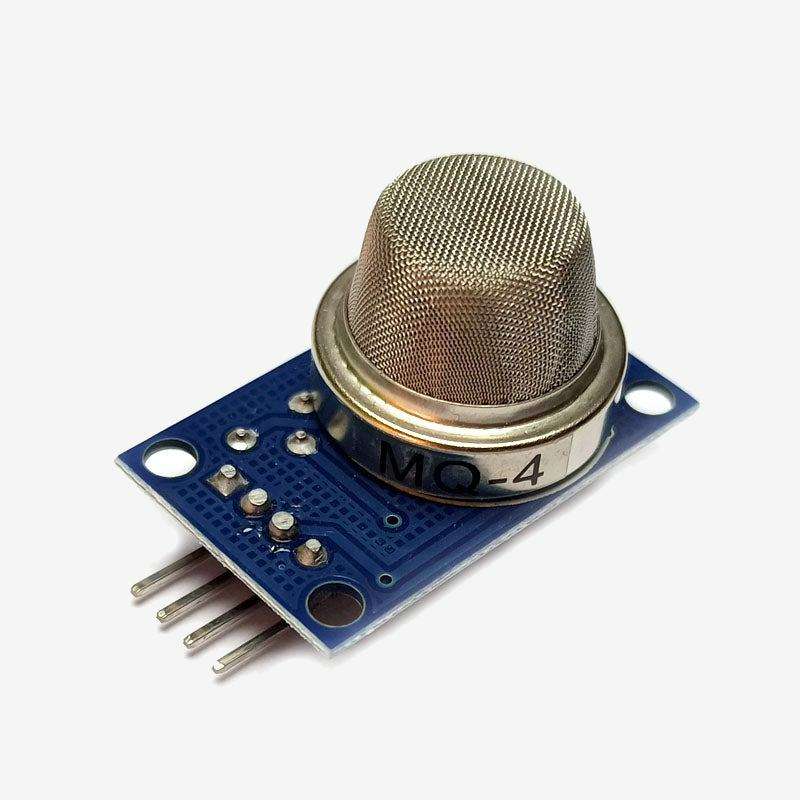

MQ-4 Methane Gas Sensor
