DIY Wi-Fi sensor, no programming, no soldering required*
Software no-code/low-code platforms made it possible to create applications, writing only a few lines of code, and in some cases, ¡no code at all!. This reduces development effort and deployment time.
This project combines two ideas: no-code/low-code software platform and a quick, robust prototyping system that requires no soldering. In this spirit, it is possible to move from an idea, to a materialised device working in a real environment in a few hours.
Key component: ESP 32 D1 MINI
Quick, robust hardware-software prototyping
The following application will be built as an example: a WiFi thermometer based on ESP32, DS18B20 temperature sensor, and local I2C indicator. All this enclosed in a waterproof, wall-mountable box and powered by 5V. This will be accomplished using the following projects:
- HARDWARE: Quick, Open Source, robust prototyping system: MISISTEMITA
- SOFTWARE: Tested TASMOTA and also ESPHome.

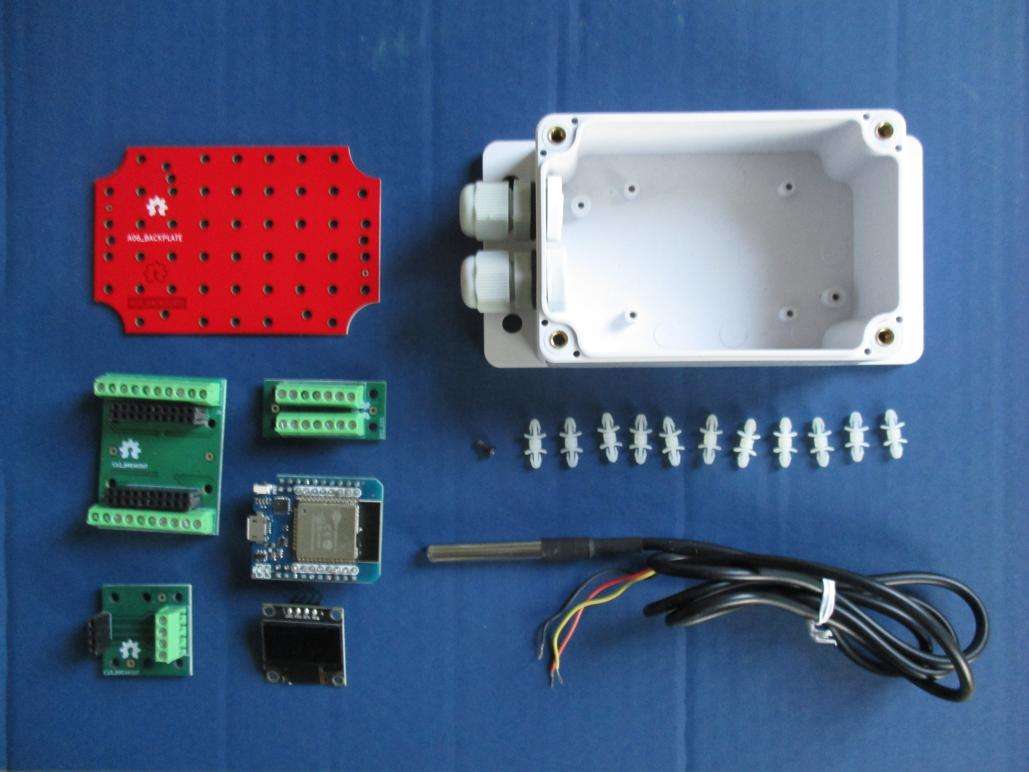

Bill of materials
Discrete parts needed
Component Datasheet - Buy link.
- ESP32 D1 MINI - buy it
- OLED 0.96 I2C Display - buy it
- DS18B20 waterproof temperature sensor- buy it
- 1/4W 1% TH Resistor- buy it
- Generic waterproof “Sonoff” enclosure 100x68x50mm - buy it
Components needed to build the required misistemita modules
Component Datasheet - Buy link.
- Reverse locking nylon spacer - buy it
- M2.6 B-type self-tapping screw - buy it
- 3.5mm kf350 screw terminal (2, 3 pins) for PCB - buy it
- 2.54mm female header connector - buy it
Printed circuit boards needed to build the required misistemita modules
PRINTED CIRCUIT BOARD SOURCE FILES REPOSITORY - BUY LINK
- A06 - Backplate for generic waterproof 100 x 68 x 52 mm enclosure - buy it
- B02 - 3.5mm screw terminal 2x7 connection board - buy it
- C12 - 3.5mm screw terminal breakout for ESP32 D1 MINI - buy it
- C10 - 3.5mm screw terminal breakout for I2C display - buy it
SOFTWARE REPOSITORY - DOWNLOAD LINK
Hardware assembly

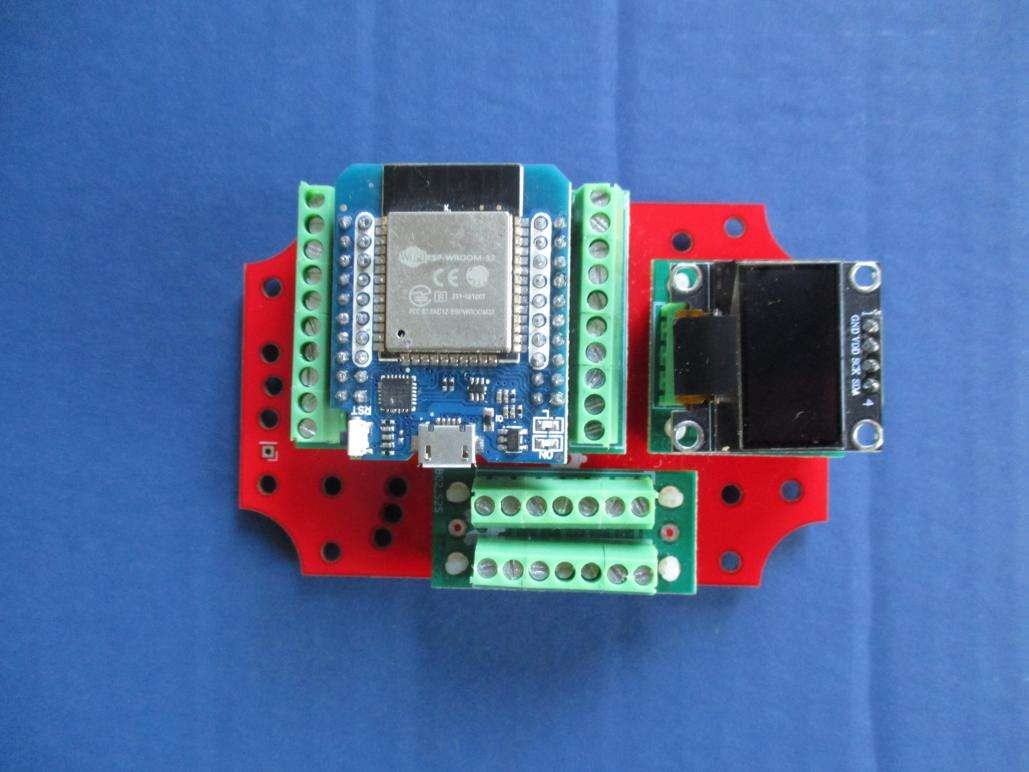

Soldering will not be required* if the modules to be used have been built or acquired beforehand. The first step is to locate the boards in the backplate, as good practice, the screw terminal wire connection boards should be placed somewhere on the edge of the backplate and as close as possible to the cable entry point.

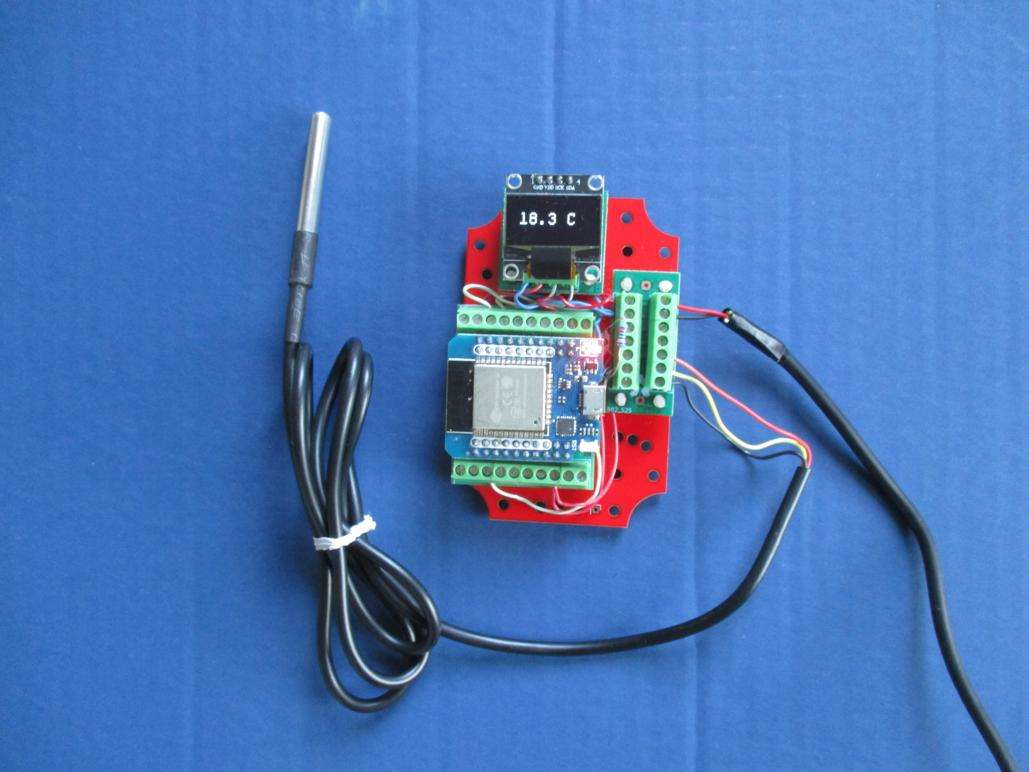

The second step is to wire the different modules depending on the originally proposed project. Both solid copper cable and multi-stranded copper cable can be used. Downloading a minimum test firmware is recommended to test the connectivity of the components.

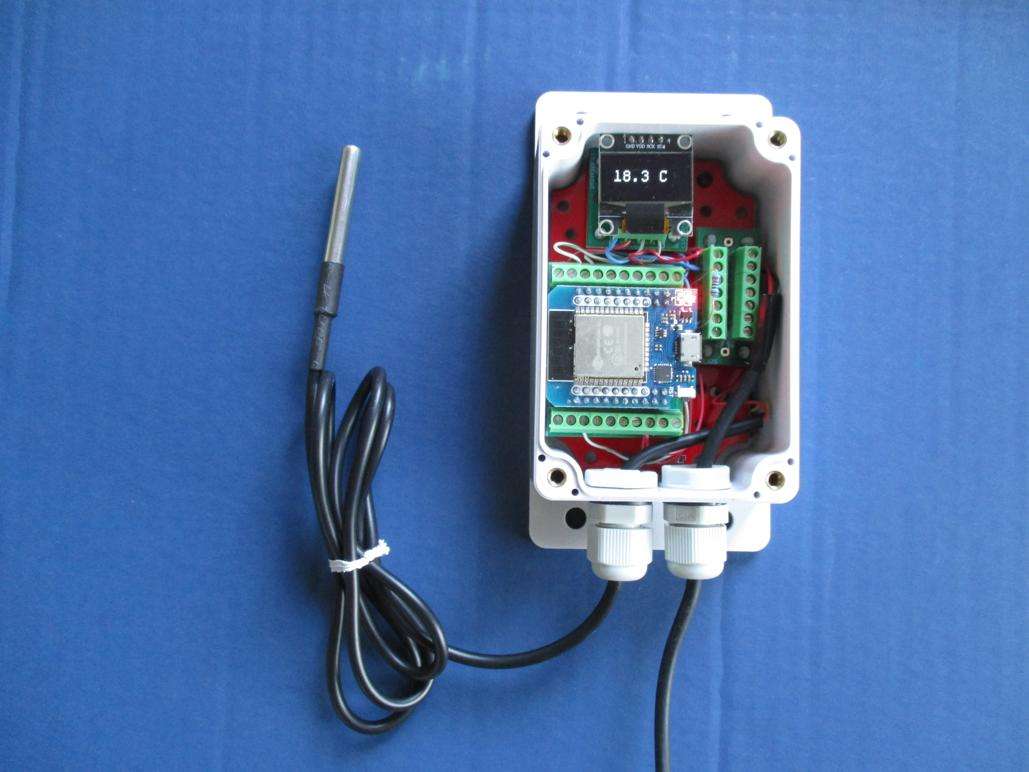

The third step is to remove the external connections, locating the backplate in the enclosure and securing it with self-tapping screws. Pass the power cables through the cable glands and reconnect them to the board.

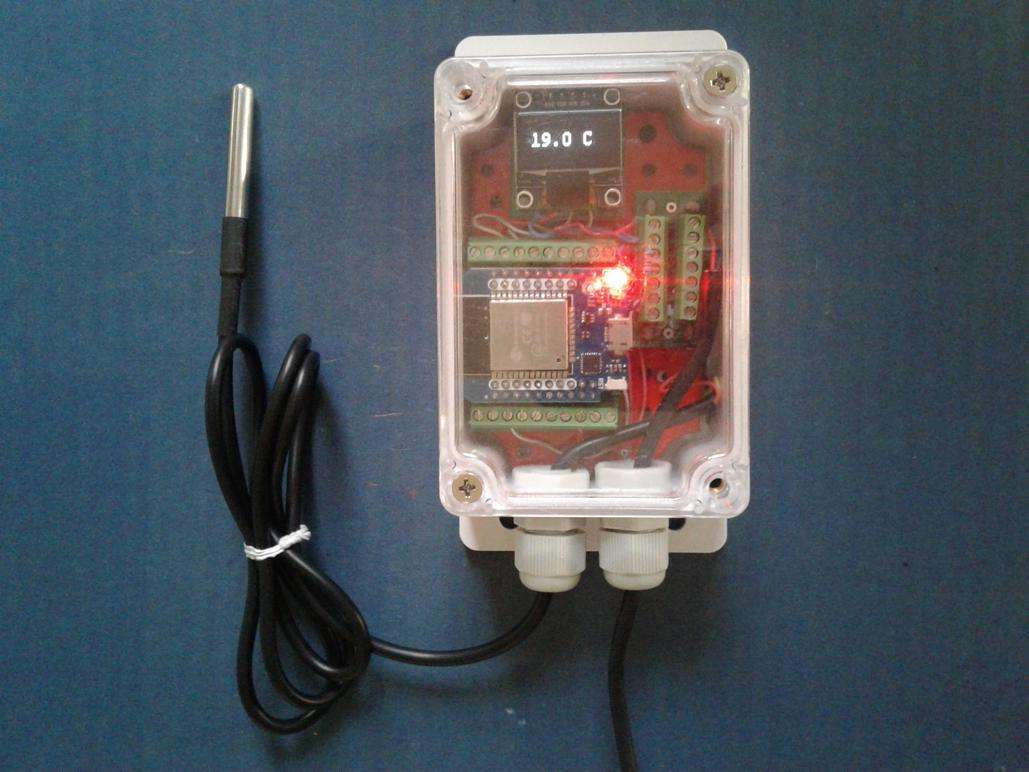

The final step consists of closing the cover, adjusting the cable glands, and installing on the wall.
Firmware setup
The following points are not intended to be a comprehensive installation or configuration guide. For more information, refer to the documentation of each platform used, (Tasmota and ESPHome). Briefly, some hints about how the sensor was created on each of them will be presented.
Tasmota
The philosophy of Tasmota consists of a basic pre-compiled firmware that is downloaded to the device and once downloaded it is customized using templates. The Tasmota installer is based on a web browser, so no additional software is required. The following parameters were used:
- Base Firmware: Display
- Template setup: I2C port pins, DS18B20 sensor pin
- Display mode: 0
- Display type: SSD1306
- Temperature visualization rule: rule 1 ON DS18B20#Temperature DO Displaytext[zs2y20] %value% C ENDON
ESPHome

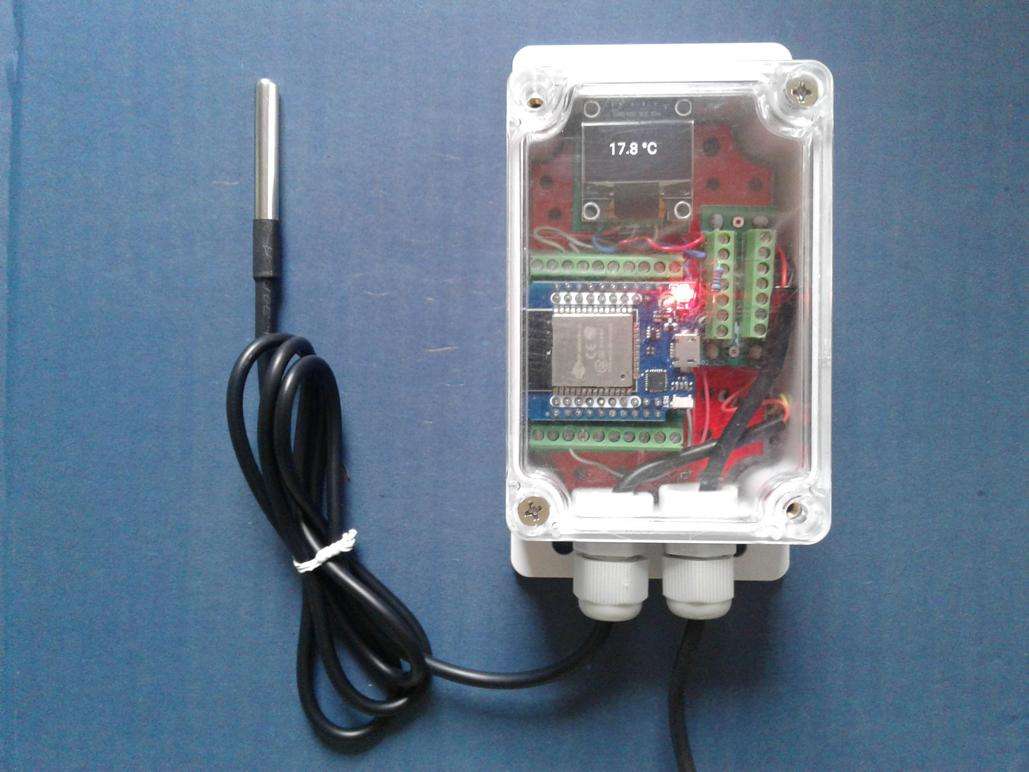

The philosophy of ESPHome consists of compiling a custom firmware using a YAML configuration file. This means that Home Assistant needs to be installed, and once it’s up and running, ESPHome should be installed as an add-on. After these two steps, it’s already possible to create sensors. A part of the configuration file is shown here in the most significant sections.
# GPIO setup
dallas:
- pin: 26
i2c:
sda: 21
scl: 22
# Sensor setup
sensor:
- platform: dallas
address: 0x8c01131b44162184
id: outside_temperature
name: "External temperature"
font:
# gfonts://family[@weight]
- file: "gfonts://Roboto"
id: roboto
size: 20
display:
- platform: ssd1306_i2c
model: "SSD1306 128x64"
address: 0x3c
lambda: |-
it.printf(90, 35, id(roboto), TextAlign::BASELINE_RIGHT , "%.1f °C", id(outside_temperature).state);
End result
hardware:
The assembly of the hardware, starting from pre-built modules, took approximately one hour.
firmware:
Sensor firmware setup, using Tasmota, took approximately 10 minutes. Making a change to configuration like an I/O pin or visualization rule takes approximately 1 minute.
The same task, using ESPHome, took approximately 2 hours the first time, because Home Assistant needs to be installed (On a Raspberry Pi or other computer). Once ESPHome is installed Making a change in configuration takes around 5 to 10 minutes depending of the speed of the Rpi for code compilation.
On both platforms, the first setup is wired (ESP32 connected to a PC). After that all updates are done wirelessly (OTA).
The only “code” that was typed on both platforms was the minimum necessary to visualize temperature on the I2C display. Each platform has its own way to do that. In both cases, has been just a single line.
