Video
DEMO
![](/storage/ProjectSection/Projects/17272/k-g-f---t--radio-controlled-boat-with-wireless-camera-to-show-live-video-and-photographs/detailed-description/Screenshot_2021-02-28-10-51-37-499_commiuigallery(0).jpg)

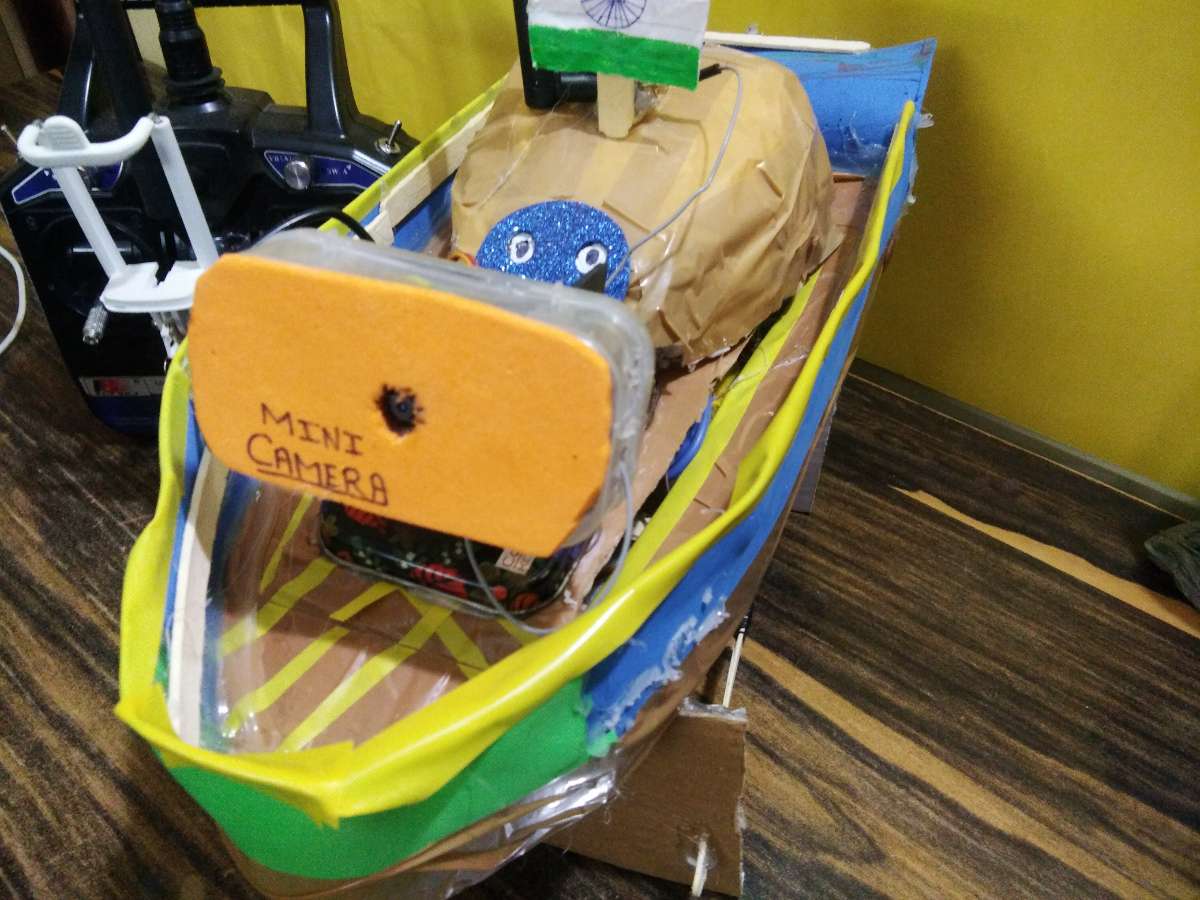

K G F –T is a radio-controlled boat in which one wireless camera is attached which helps to show live video and photographs.
![](/storage/ProjectSection/Projects/17272/k-g-f---t--radio-controlled-boat-with-wireless-camera-to-show-live-video-and-photographs/detailed-description/IMG_20210227_203456.jpg)
- The main purpose for making K G F – T to use in the army,
- It will help the army to track any illegal supplies or terrorists along sea routes.
- It will also help the army to find human beings, which are lost in the flood.
The use of K G F – T are:-
1> It can find human beings who are
lost in flood.
2> It can track any illegal supply in the sea
routes like narcotics and weapons etc.
3> It can find any lost boat or ships
which are disconnected with their
ports.
4> It can go into the danger zone before
human being.
5> It can also transport small things under 300g (like- Gun parts, etc.)
![](/storage/ProjectSection/Projects/17272/k-g-f---t--radio-controlled-boat-with-wireless-camera-to-show-live-video-and-photographs/detailed-description/IMG_20210227_203505.jpg)

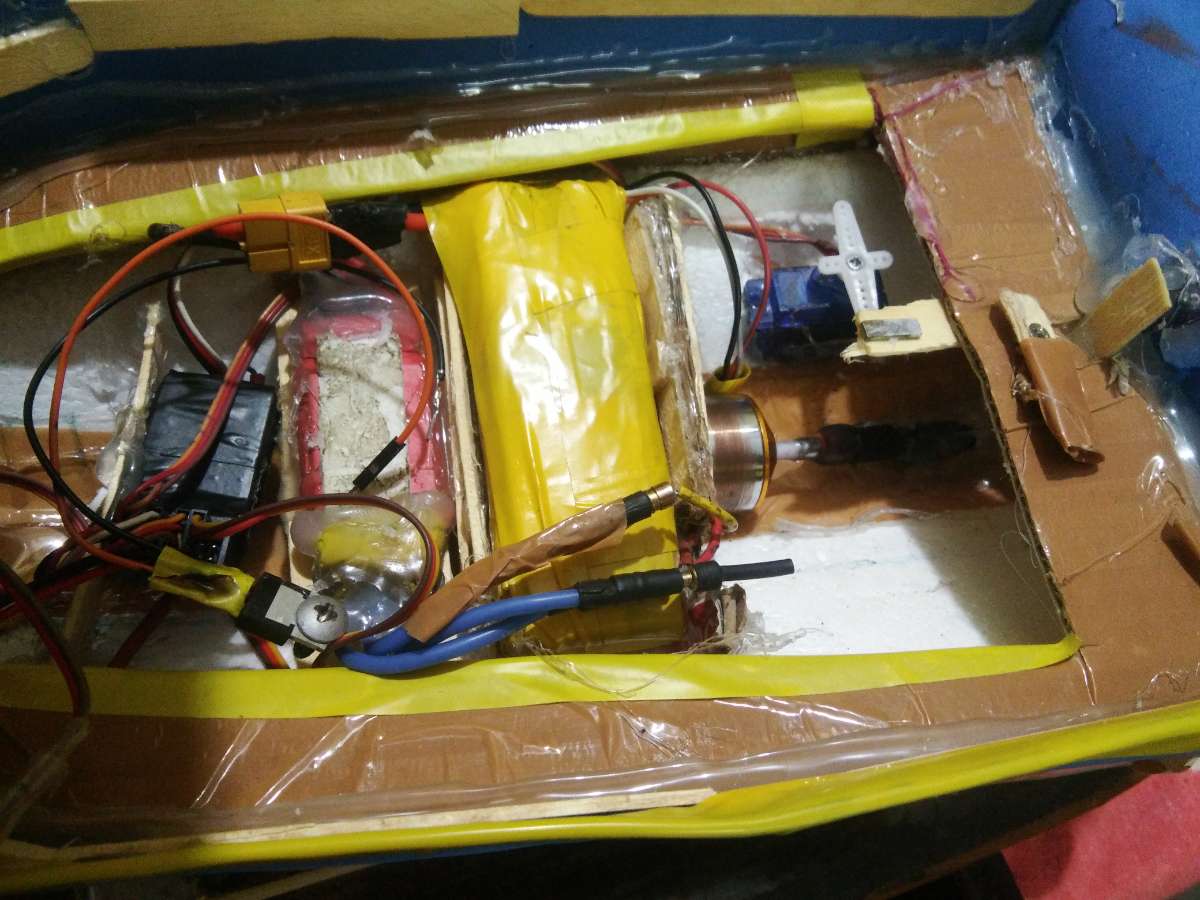

Short description of how I build this:-
1> I made the chassis of KGF-T (from a foam sheet,thermocol sheet, and waste material).
2> I made a propeller ( with a metal sheet).
3> I attached all electronics (like Bldc motor, ESC (electronic speed controller), esp32 cam module, Arduino Uno, etc).
4> I attached my controller (fly sky ct6b), with the help of which I can control my boat (with a range of 1km)
5> I did my all wiring
Then I went for testing :)
![](/storage/ProjectSection/Projects/17272/k-g-f---t--radio-controlled-boat-with-wireless-camera-to-show-live-video-and-photographs/detailed-description/IMG_20210227_212055.jpg)
Specification of K G F – T:-
1> The body is made up of waste products and household materials, only the electronics are purchased.
2> It will give us 30 min backup.
3> It can go up to 1km.
Parts used in K G F – T
1> Brushless motor. (to rotate the propeller)
2> ESC (electronic speed controller). (it is used to control motor)
3> Camera module. (for live video)
4> 3 Servo motor. (for the gimbal of the camera and to make the boat move left and right)
5> Fly sky transmitter (ct6b). (main controller of the boat with the help of which we can control the boat)
6> Lipo battery. (the main source to supply power to all components)
7> Arduino UNO. (which is attached with the camera module)
HOPE YOU LIKE MY PROJECT! :)
