Seven Segment Display with leds

Published Sep 17, 2020
 Apache-2.0
 2 hours to build
 Beginner
arduino

In the project i made seven Segment display with the help of leds where two led represent one segment of display which is control by Arduino uno.

display image

Components Used
Arduino Nano
Arduino Nano 		X 1
Breadboard
Breadboard 		X 1
Connecting Wire Jumper Wires
Connecting Wire Breadboard wires 		X 1
LED 5mm
LED 5mm 		X 1
Description

What is Seven Segment display?

Amazon.com: microtivity IS111 7-Segment LED Display, 1 Digit Red Common Cathode (Pack of 4): Industrial & Scientific
Seven Segment display
  • It is an alphanumeric display.
  • It contain 7 leds.
  • It is used in digital clock ,electronic meters , basic calculators, and other electronics devices.
  • It has two type common anode & common cathode.
  1. Common Cathode.

             In common cathode all the cathode pins are connected  with the ground.

     2. Common Anode.

            In common anode all the anode pins are connected  with the 5 volt.

Control Seven Segment Display with MSP430G2553 – Embedded Project Hunter
Circuit diagram of both the type of seven segment display

About the Project.

in this project Arduino Uno is used  as a Microcontroller  and for making display leds are used where  one segment of display is represented by the two Leds.

As it is a Common cathode Seven segment so all the cathode pin is connected with the ground .

STEPS::-

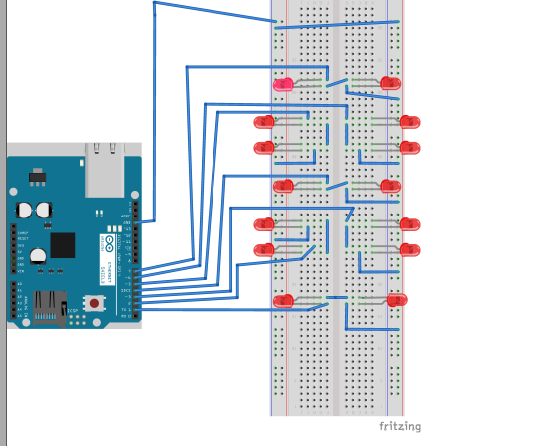

  1. Take a breadboard and  fixed the all 14 leds as shown in the diagram.

2. After that connect these leds with arduino uno according to diagram.

Codes

Downloads
seven segment_____ Download

Institute / Organization

MJP ROHILKHAND UNIVERSITY(Bareilly)
