SMART PARKING SYSTEM

Published Nov 20, 2020

Apache-2.0

16 hours to build

Beginner

arduino

Recently from few years people have started focusing on modernization. So in this project "SMART PARKING SYSTEM" everything is based on modern idea, and through this project we also tried to short out space related problem which usually occurs in parking.

Components Used
LCD16x2 Display LCD16x2 Display	X 1
Arduino Nano Arduino Nano	X 1
Connecting Wire Jumper Wires Connecting Wire Breadboard wires	X 20
LED 5mm LED 5mm	X 8
LCD 16x2 with I2C Interface LCD 16x2 with I2C Interface	X 1
AK9753 IR sensor AK9753 is a low power and compact IR (infrared) sensor module.	X 4
L298N Motor driver L298N is a high current, high voltage dual full bridge motor driver. It is useful for driving inductive loads.	X 1
Tactile Switches Tactile Switches 12 x 12 mm 12 mm 100 gf Short Crimped Black Through Hole SPST	X 2
DC Gearbox Motor Adafruit Accessories DC Gearbox Motor - TT Motor - 200RPM - 3 to 6VDC	X 1

Description

What's all about the Project?

As we know, now the time is changing and World is opting modernization.This project "SMART PARKING SYSTEM" is all about the modern techniques for parking the vehicles.

The main purpose of this project is to make use of advance technology for parking large number of vehicles without occupying more area.

In this system,there are 4 slots which indicates whether they are free or booked. When all the vehicles will occupy the slots then it will indicate as, All slots are booked.

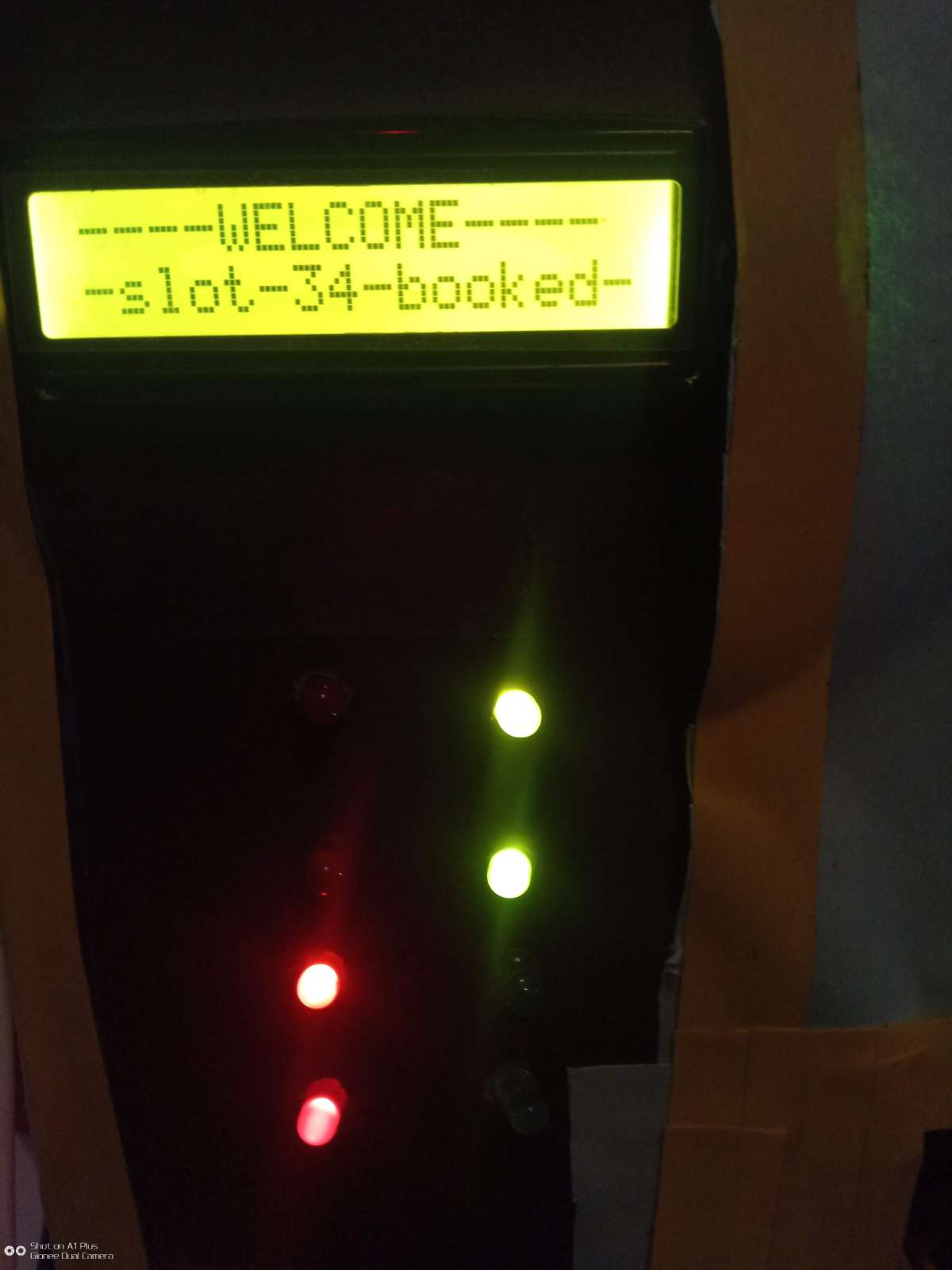

LCD Display & Led's indicate which slot is booked

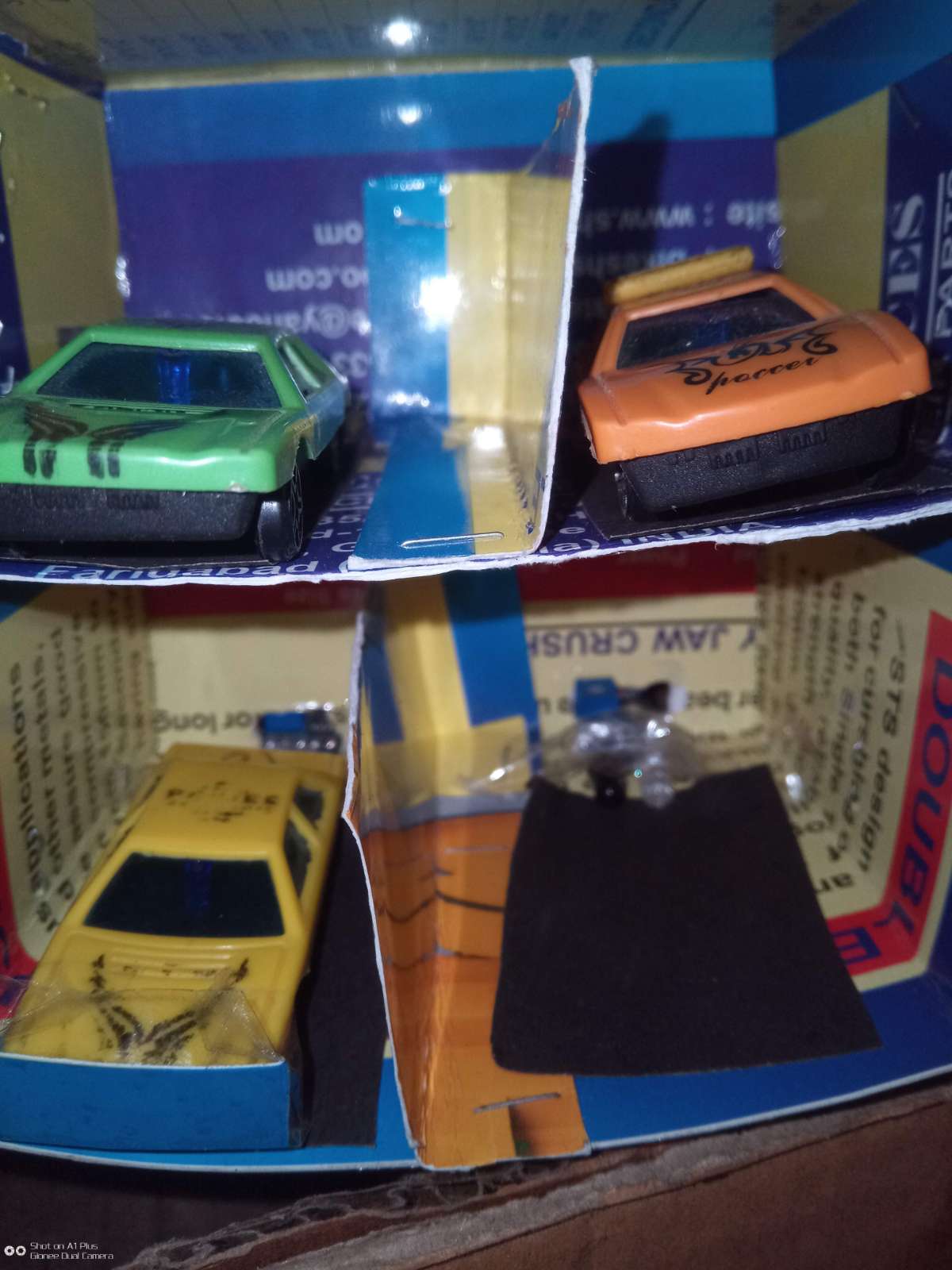

It is 2-storey Parking system, 2 slots are at first floor and 2 slots are at second floor. After filling the first two slots, the system will lift it up and the next two slots will be available for another vehicle.
