Smart IOT RGB Bulb Set the mood

Published Jul 12, 2022

Apache-2.0

120 hours to build

Advanced

arduino-esp8266

blynk

andriod studio

RGB bulb is based on IOT controlled via smart phone Anywhere from world Plug and play

Components Used
7805 Voltage Regulator 7805 Voltage Regulator	X 1
NodeMCU NodeMCUNodeMCU	X 1
TIP41C NPN Transistor Bipolar Transistors - BJT NPN Gen Pur Power	X 1
APA102 RGB Color Control LED APA102C is an RGB full color LED control IC which has an SPI interface.	X 1
12VDC Adapters Power Supply Wall Mount AC Adapters POWER SUPPLY 12VDC MEDIC GRADE US EU UK	X 1
Copper clad PCB board Copper Clad Boards DB SIDE COP CLAD BRD 1/16in 1 OZ COPPER	X 1

Description

The idea came from recent trends and decors in-home, So for design PCB EASY EDA tool is used and for backend implementation of controlling the RBG BULB Node MCU and Blynk server are used. For future upgrading dedicated app is under development with its database

For controlling the LEDs PWM signals are used

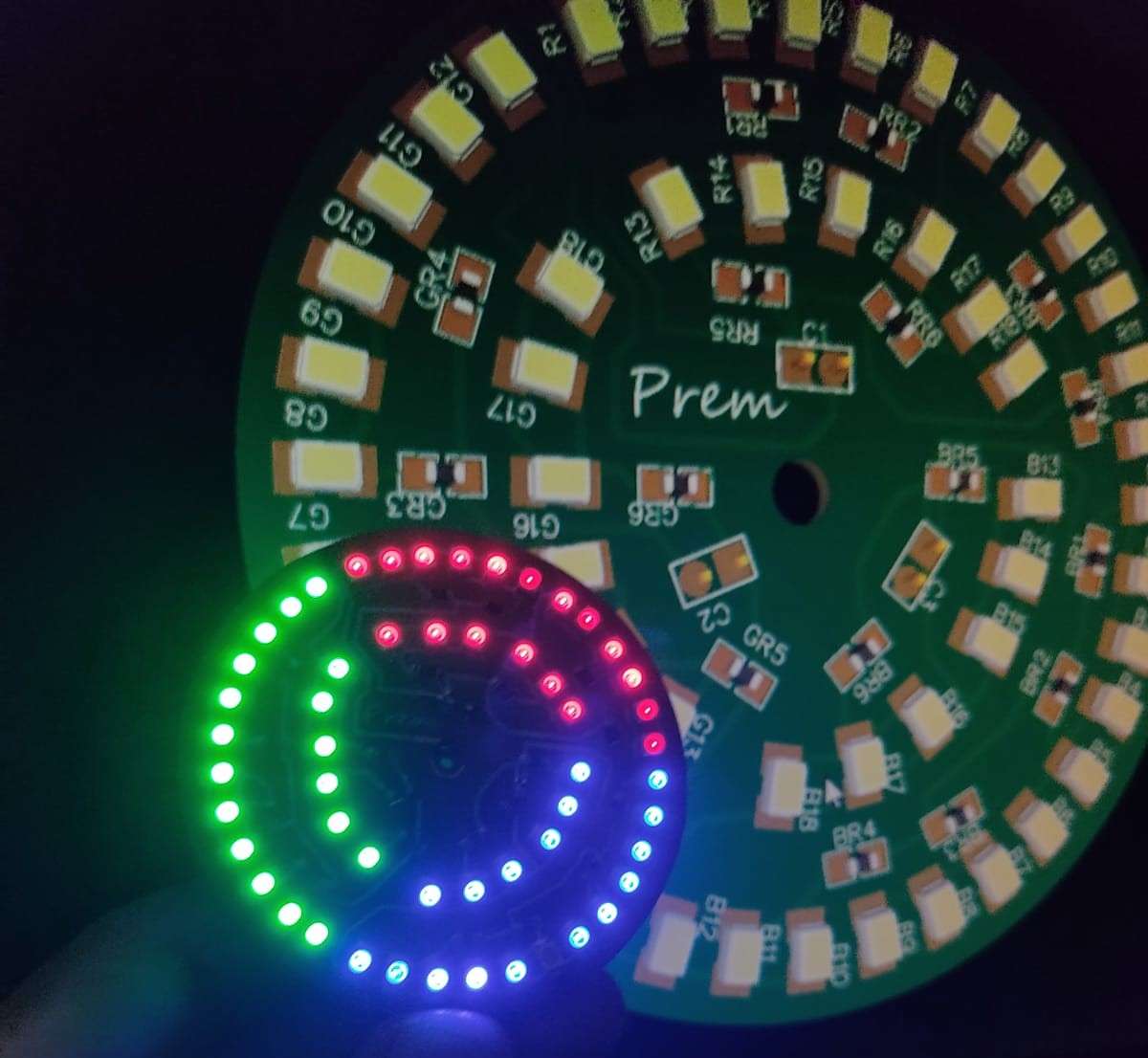

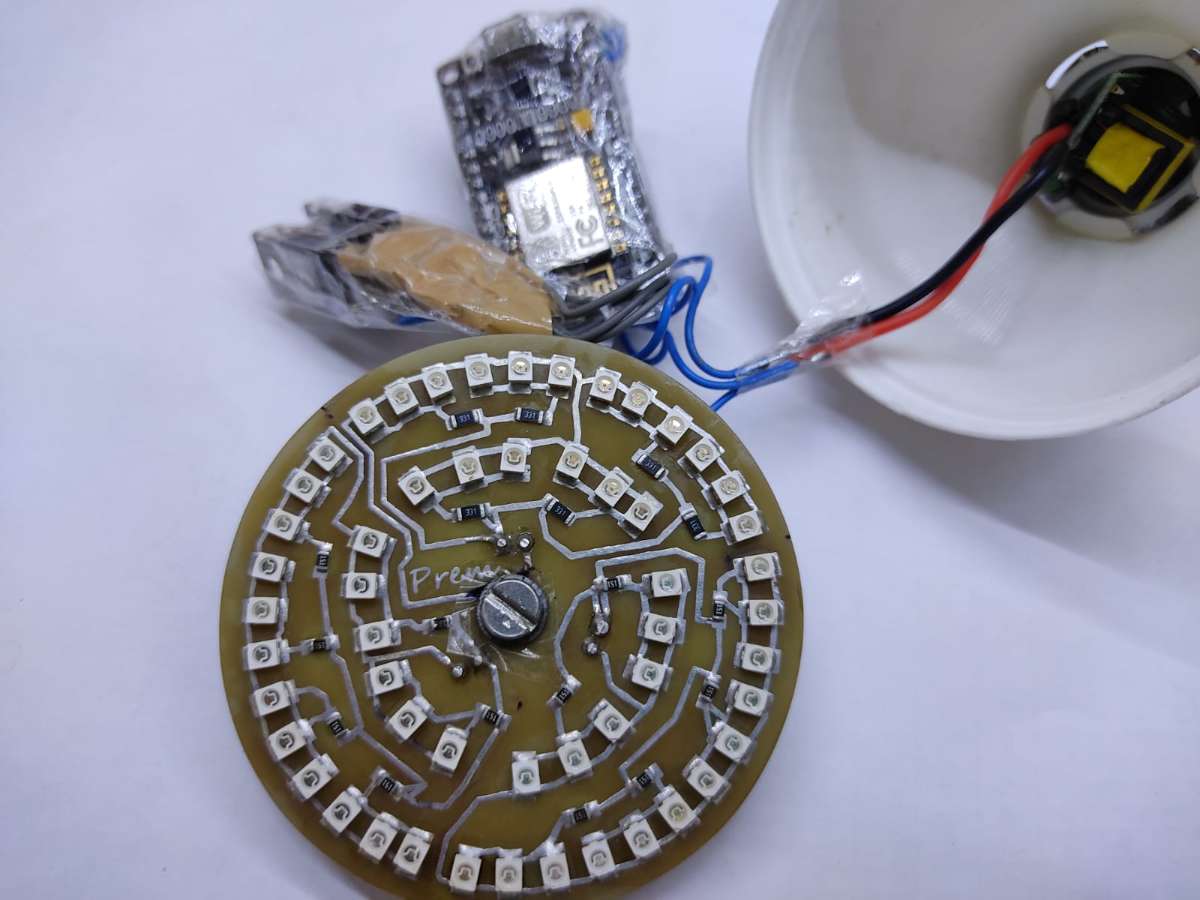

PCB mainly consists of RGB SMD LED's and for better heat dissipation 5mm Aluminum Heatsink is used

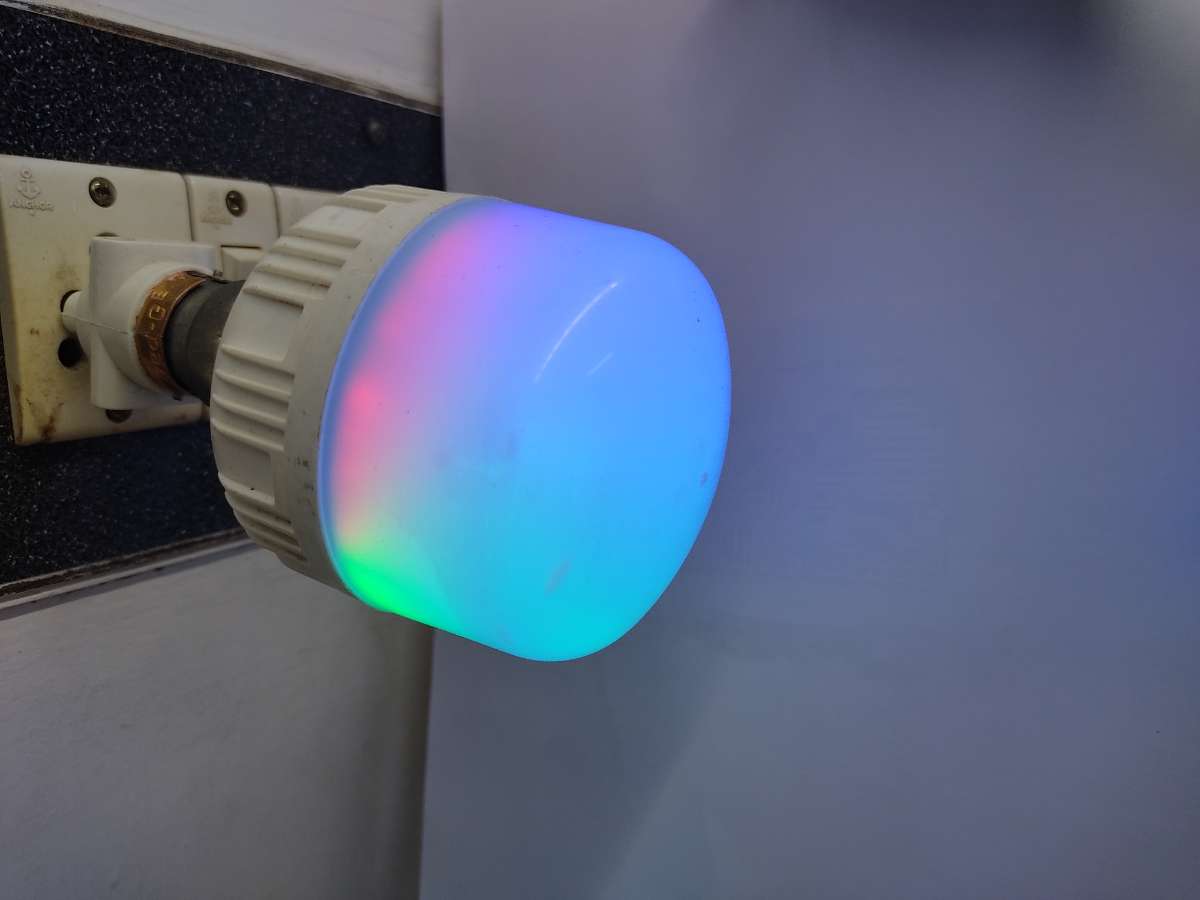

The entire circuit is enclosed within PVC BULB Casing

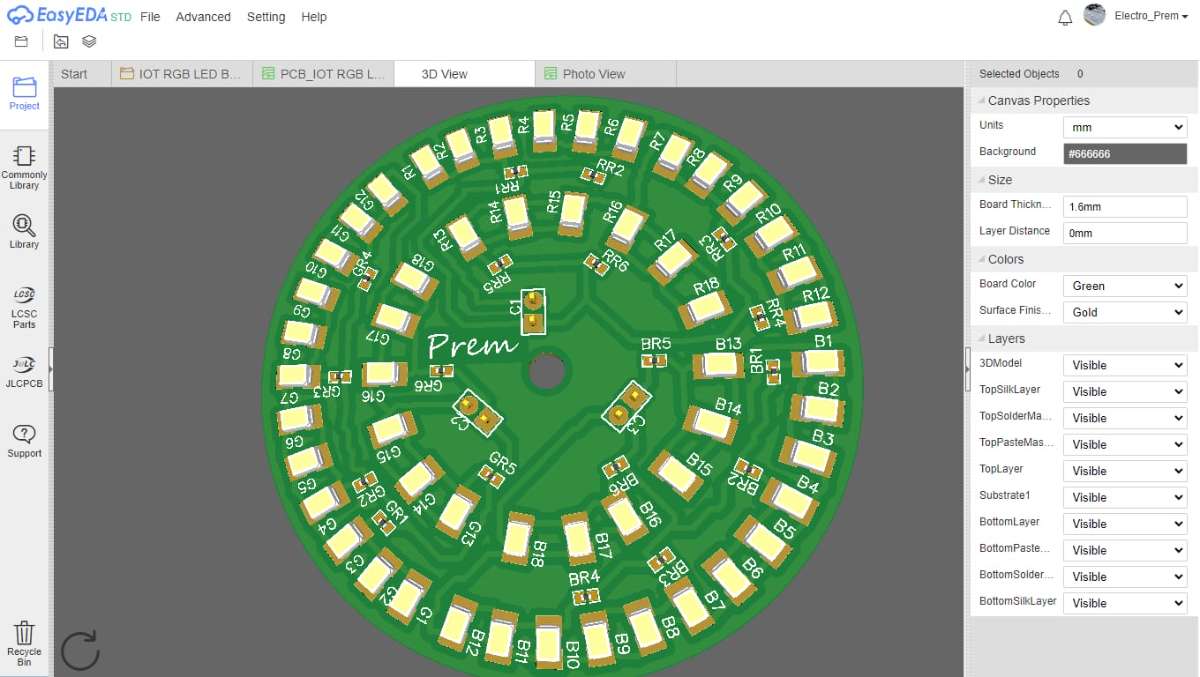

3D View of PCB
Link for Demo : https://drive.google.com/file/d/1W8RAVVS90KwKDCEak9P0NyzRi8TugQ5N/view?usp=sharing

Codes

Downloads
	Blynk Control Code	Download
	Schematic_IOT RGB LED BULD WITH RESISTORS12v_2022-07-03	Download
