Single board microcontrollers and microprocessors along with huge number of sensors available in market have enabled researchers to automate various daily life items.
An automatic Shed is an intelligent shed that is opened or closed depending upon the environmental factor: rain.

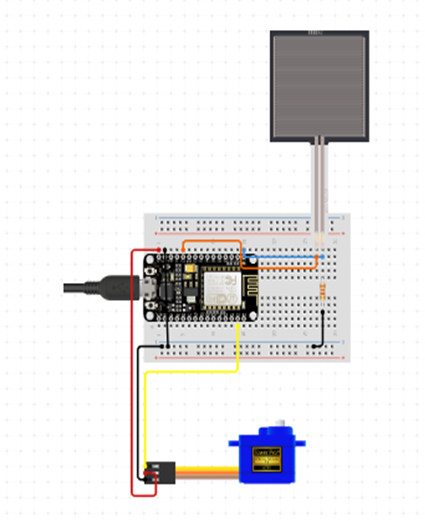

Circuit
.png)
Automatic Shed is ready to use, cost-effective, and energy-efficient system. It is of key importance where sheds or shacks are opened or closed frequently. Like in open-air restaurants normally sheds are removed but it should be applied immediately if it starts raining or the temperature bypasses a specific threshold.
Automatic Shed has two modes of operation: Manual and Automatic.
In the manual mode of operation, all environmental factors are disabled, and shed is applied or removed depending upon user preference by means of a physical switch. In automatic, the shed will open automatically during rain and closes automatically with some time delay when the rainfall stops also it can be controlled using IoT through mobile phones. The work has been shown in the below video.
Video
https://drive.google.com/file/d/1ChqBGKKNDZGY93SxPuaZvzVtpUPp7RRK/view?usp=drivesdk
