SMART HOME AUTOMATION

Published Mar 11, 2021
 4 hours to build
 Beginner

Smart Home Automation is all about making our home appliances work automatically, by using the latest technology IOT(Internet of Things).

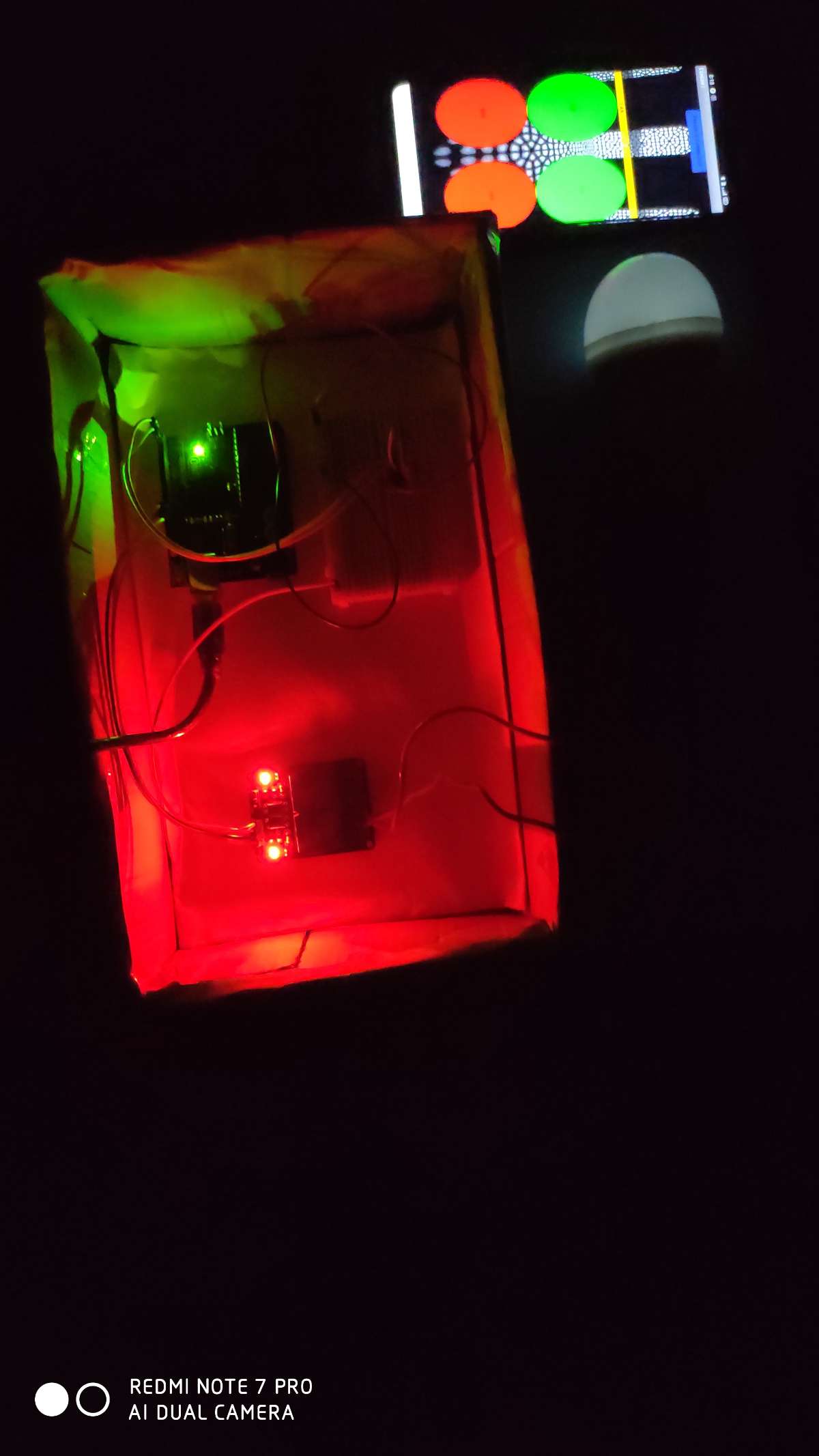

display image

Components Used

Bluetooth Module HC-05
Bluetooth is a wireless communication protocol used to communicate over short distances. It is used for low power, low cost wireless data transmission applications over 2.4 – 2.485 GHz (unlicensed) frequency band.
1
Arduino UNO
Arduino UNO
1
Relay Module Two channel
Relay Module Two-channel
1
Breadboard Half Size
Breadboard Half Size
1
Connecting Wire Jumper Wires
Connecting Wire Breadboard wires
1
Lamps
Lamps Candelabra Screw 230V
1
Description

 SMART HOME AUTOMATION

Smart Home Automation is all about making our home appliances work automatically by connecting it to our mobile phones.

It typically connects the devices to the hub or gateway. We used the latest technology that is IOT for making this.

Circuit Connections

Relay :

In1 connected to Pinout 2 of Arduino

In2 connected to Pinout 3 of Arduino

Bluetooth:

RX to Pinout 10

TX to Pinout 11

VCC to 5V

GND to GND.

After the connection, we have to download an app for connecting it.

•App I Used was Home Automation app, then I connected with Bluetooth HC-05, After uploading the code in Arduino. Then just switch on and off the buttons from mobile phone.

Codes

Downloads

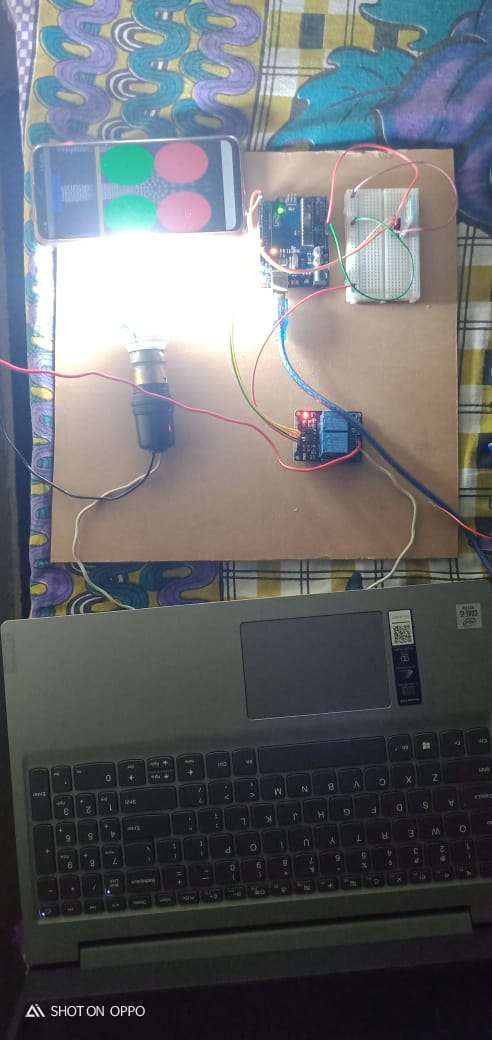

IMG-20210309-WA0146 Download

Institute / Organization

MJPRU
