Burgular Alarm System

Published Jun 24, 2021
 Apache-2.0
 2 hours to build
 Beginner
arduino uno
tinkercad

A burgular alarm system is basically an anti theft alarm, which can detect the thief in our house, building or office. It uses PIR sensor to detect the person around it's range.

display image

Components Used
PIR Sensor
PIR motion sensors sense the Infrared signal radiated from moving objects including human or animal body. It is generally used to detect the presence of human or animal motions. 		X 1
Connecting Wire Jumper Wires
Connecting Wire Breadboard wires 		X 1
Arduino UNO
Arduino UNO 		X 1
Buzzer 5V
Buzzer 5V 		X 1
Breadboard Half Size
Breadboard Half Size 		X 1
LED 5mm
LED 5mm 		X 1
Description

BURGULAR ALARM SYSTEM



This is basically an anti theft alarm system which can help us to detect the person around our house, building or office. This project uses PIR sensor for detecting the unknown person who enters our house. It detects within its range and start beeping the buzzer, to give us alert.

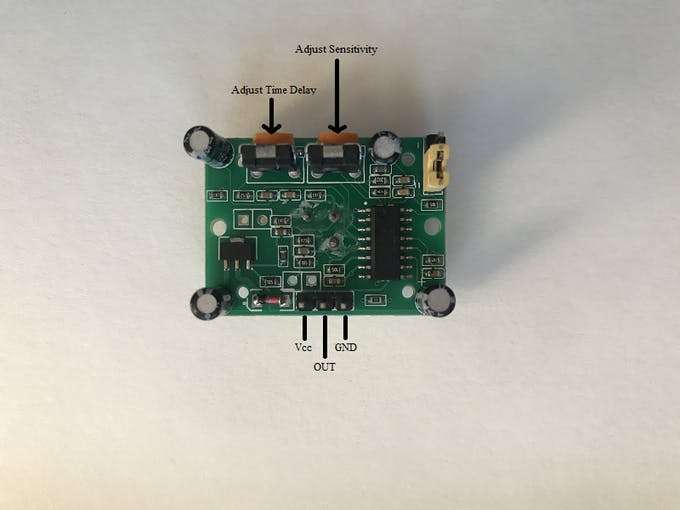

PIR SENSOR



Passive Infrared sensor detects the radiation which emits from the heat of the body, it can be either from the human or animal body.



CONNECTION



VCC - 5V of Arduino

GND - GND

OUT - Arduino pin 3

LED - Arduino pin 13

Buzzer - Arduino pin 8

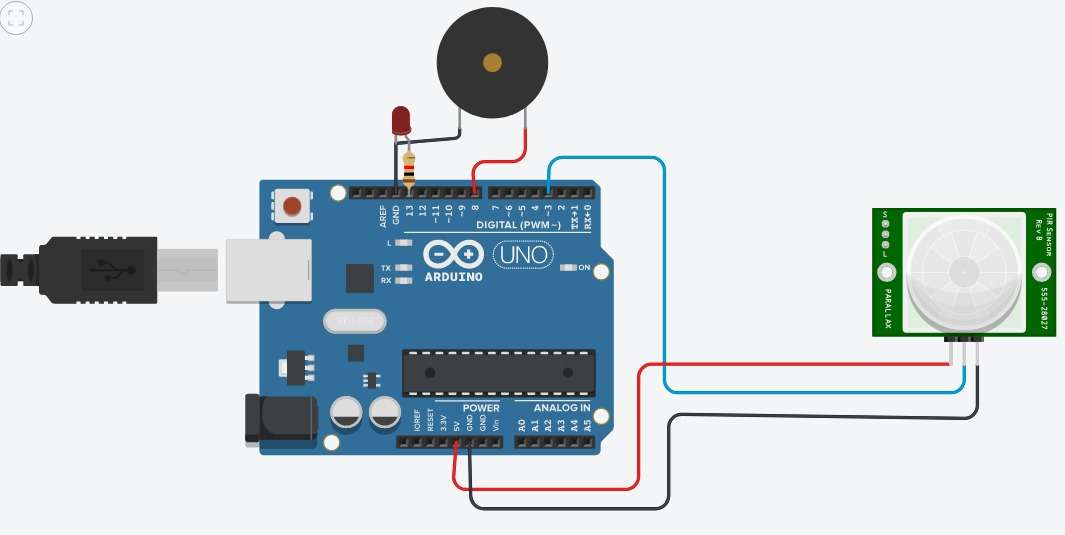

CIRCUIT DIAGRAM

Codes

Downloads
image Download
Circuit diagram Download
PPT Download
