Piano Using Arduino

Published Jun 24, 2021

1 hours to build

Beginner

This is full fun based project made using Arduino Uno.

Components Used
Buzzer 5V Buzzer 5V	X 1
Connecting Wire Jumper Wires Connecting Wire Breadboard wires	X 1
Arduino UNO Arduino UNO	X 1
Tactile Switches Tactile Switches 12 x 12 mm 12 mm 100 gf Short Crimped Black Through Hole SPST	X 7
Resistor 10 kOhms Metal Film Resistors - Through Hole 10 kOhms 250 mW 1% 100 PPM / C	X 7

Description

PIANO USING ARDUINO

This is fully fun based project which is designed by Arduino Uno, some push buttons and buzzer. This includes the seven tune of music.

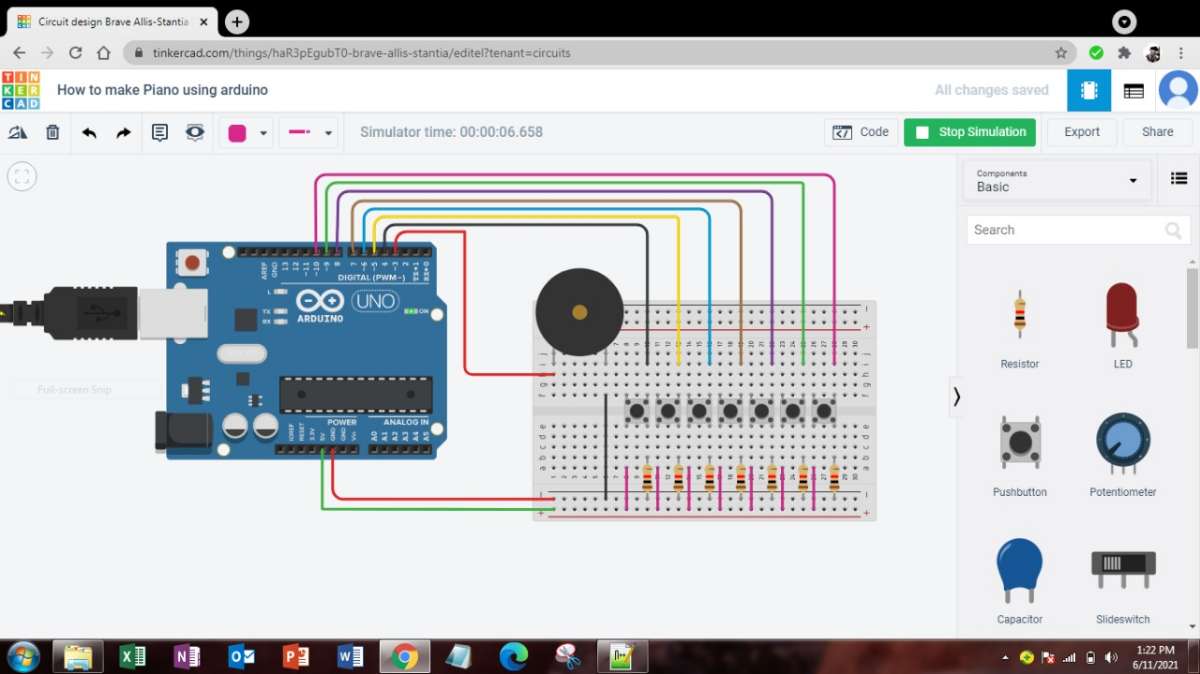

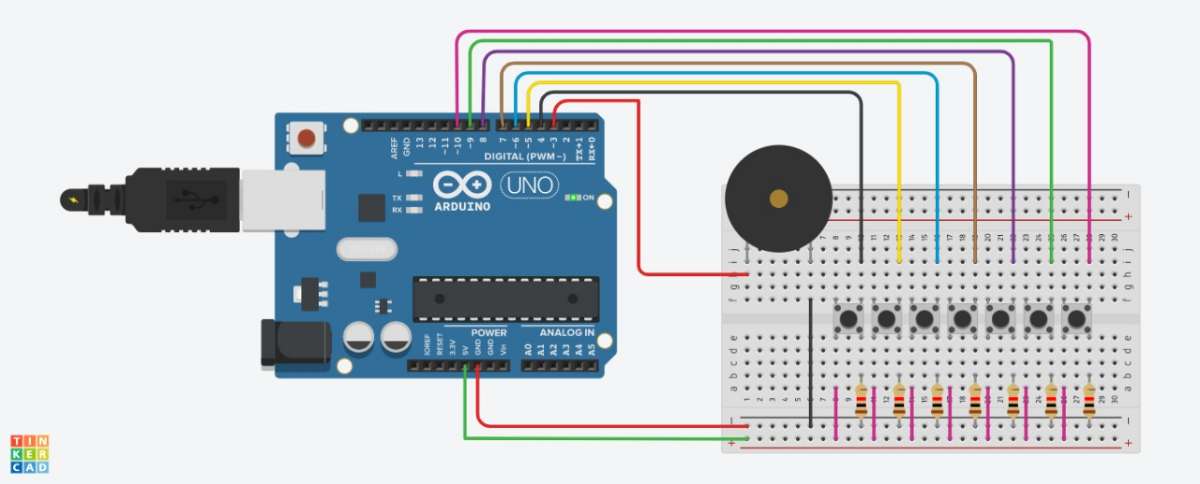

1 push button of terminal 2b - Pin 4 of Arduino

2 push button of terminal 2b - Pin 5 of Arduino

3 push button of terminal 2b - Pin 6 of Arduino

4 push button of terminal 2b - Pin 7 of Arduino

5 push button of terminal 2b - Pin 8 of Arduino

6 push button of terminal 2b - Pin 9 of Arduino

7 push button of terminal 2b - Pin 10 of Arduino

Buzzer - Arduino pin 3
