Digital Security Door Lock System

Published Jul 29, 2021

Apache-2.0

3 hours to build

Intermediate

arduino

tinkercad

This was basically a digital door lock system which can be used for our safety at home.

Components Used
4x4 Keypad Module Keypad is an input device which is generally used in applications such as calculator, ATM machines, computer etc.	X 1
LCD16x2 Display LCD16x2 Display	X 1
HerkuleX DRS-0101 Servo Motor HerkuleX DRS-0101 is a smart servo incorporating a motor, gear reducer, control circuitry and communication ability in a single package.	X 1
Arduino UNO Arduino UNO	X 1
Male to Female Jumper Wire Jumper Wires Mach pin jumper wires	X 1
Male to Male Jumper Wire Jumper Wires Mach pin jumper wires	X 1
Female to Female Jumper Wire Jumper Wires Mach pin jumper wires	X 1
SG90 Servo Motor Power Management IC Development Tools SG90 Servo	X 1

Description

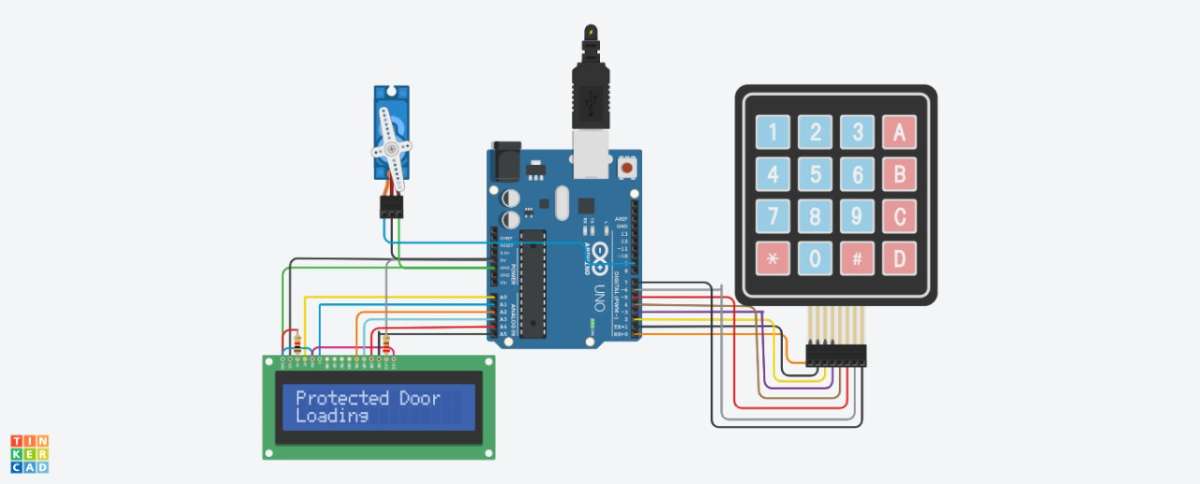

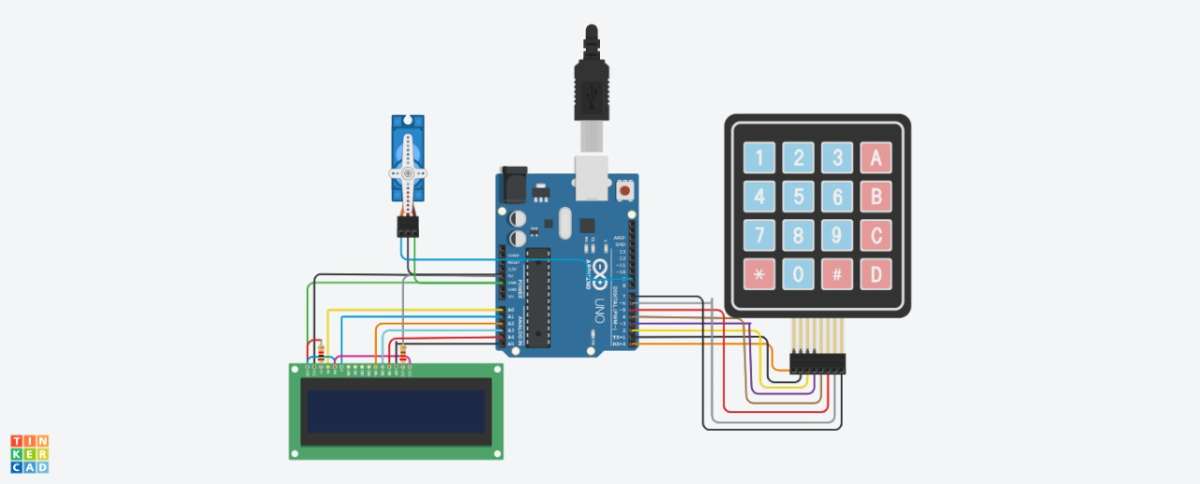

DIGITAL SECURITY DOOR LOCK SYSTEM

It is a door lock system which is used for security and safety at home. You can simply add the password for your family and when the password will be correct the door will open and if the password is incorrect the door doesn't open. It can play a vital role in decreasing the case of kidnapping from the house or home robbery.
