Dice Using 7 segment display and Attiny85

Published Aug 27, 2021

Apache-2.0

4 hours to build

Intermediate

attiny85

tinkercad

This is a small project with some creativity. I build the Dice using 7 segment display which we can use for playing.

Components Used
ATtiny85 ATtiny85	X 1
Breadboard Half Size Breadboard Half Size	X 1
Mini Push Button Switch - 5-6mm Mini Push Button Switch - 5-6mm	X 1
Connecting Wire Jumper Wires Connecting Wire Breadboard wires	X 1
Seven 7 Segment Display Seven 7 Segment Display	X 1
CD74HC595 bit Shift register CD74HC595 is an 8-bit shift register with 3-state output registers.	X 1
5VDC Adapters Power Supply Wall Mount AC Adapters ac-dc, 5 Vdc, 2 A, SW, wall-plug, EU, P5 center pos, level VI, black	X 1

Description

DICE USING 7 SEGMENT DISPLAY AND ATTINY 85

Description -

This is a type of creative project, making of dice using 7 segment display and the microcontroller I used was Attiny85. It is just an unique idea for making ourself free from manual things and using the technology more.

We used 8 bit shift register for giving command to the numbers of 7 segment display.

WORKING -

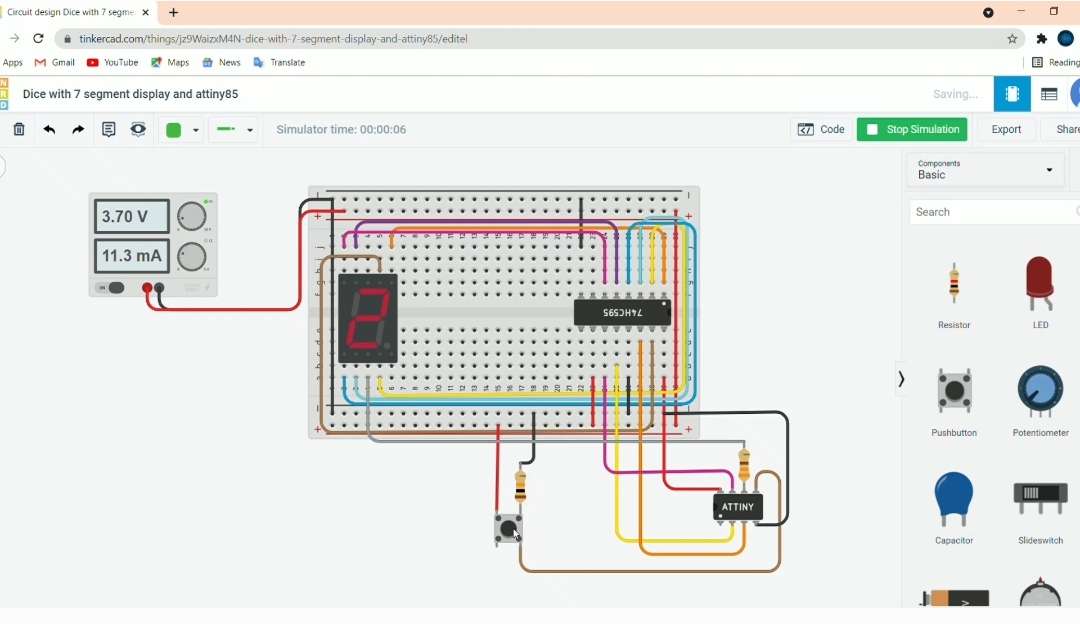

It works on by giving power to attiny through the power supply and then attiny is connected to 8 bit shift register which gives the clock signal to the 7 segment display for showing the random numbers. When we on the circuit then, the power supply gets on. So when we press the push button, the random numbers occur on 7 segment. So this can be Excitingly used for playing ludo or any game related to dice.

If you want to know more about this project you can see the video -
