it is radar works under ultrasonic sensor , servo motor microcontroller and coding software . using software to get the visual representation.
Components Used |
||
|---|---|---|
| Servo Motor MG995 Servo Motor MG995 |
X 1 | |
| Ultrasonic Module HC-SR04 Ultrasonic module HC-SR04 is generally used for finding distance value and obstacle detection. It can operate in the range 2cm-400cm. |
X 1 | |
| Arduino UNO Arduino UNO |
X 1 | |
| Breadboard Breadboard |
X 1 | |
| Connecting Wire Jumper Wires Connecting Wire Breadboard wires |
X 1 | |
It will useful for home security alone with cc camera like it will scan the data and it will upload to cloud using bolt iot module.
Steps
1.download Software processing ide 3

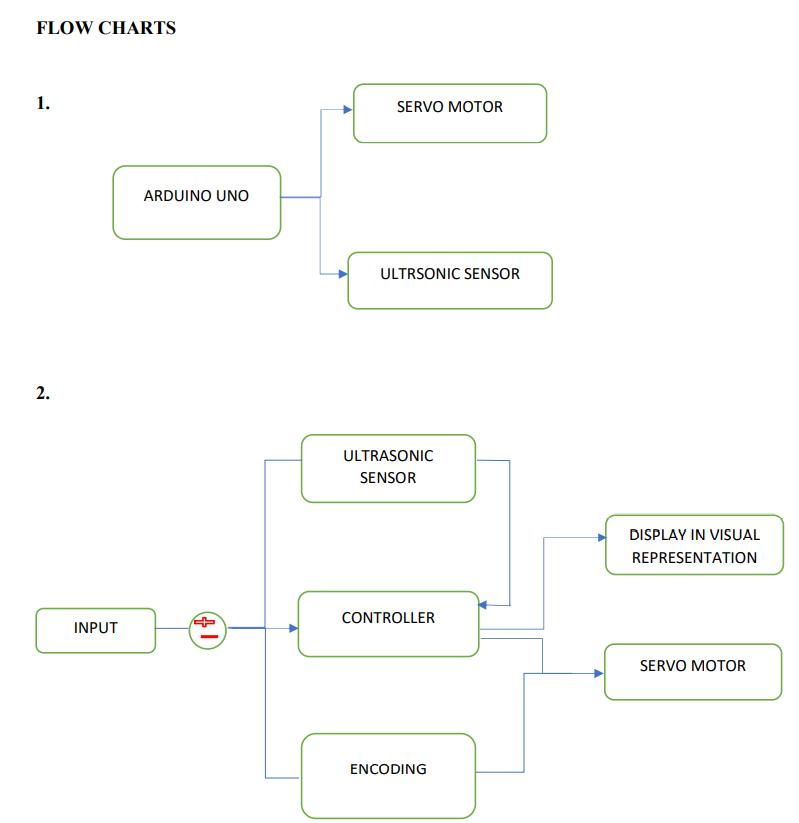

2. connect the arduino uno to the servo motor as well as ultrasonic sensor.
3. run the code in arduino uno to check whether ultra sonic sensor getting correct output in serial monitor.

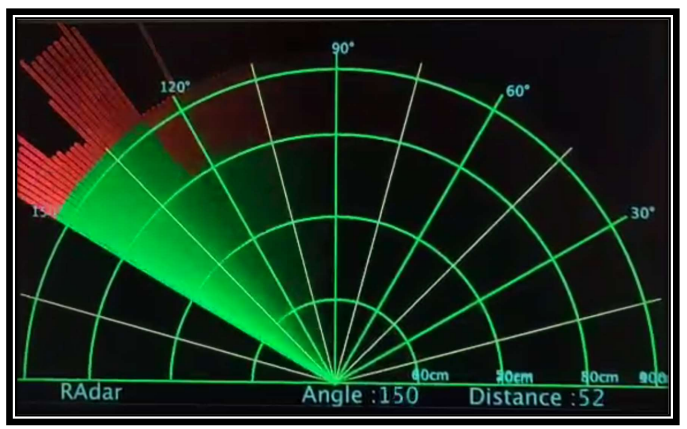

4. after arduino run the code in processing ide 3 software to get the visual representation.
.png)
.png)
Downloads |
||
|---|---|---|
|
|
radar output | Download |
