This is a robot which sketches the image, or diagram we feed. It automatically performs all the task including pen adjustment and gives the final image.
Components Used |
||
|---|---|---|
| Arduino Nano Arduino Nano |
X 1 | |
| Breadboard Breadboard |
X 1 | |
| A4988 Bipolar Stepper Motor Driver A4988 is a bipolar microstepping motor driver for stepper motor. |
X 3 | |
| 12 VDC 1000mA Power Adapter Adafruit Accessories 12 VDC 1000mA Power Adapter UL Listed |
X 1 | |
| Cnc extension shield for arduino nano Used for connecting additional motors |
X 1 | |
| 3D printed parts |
X 1 | |
Step 1: Design all the frames and parts in the Fusion360.
Step 2: print all the parts in the 3d printer.

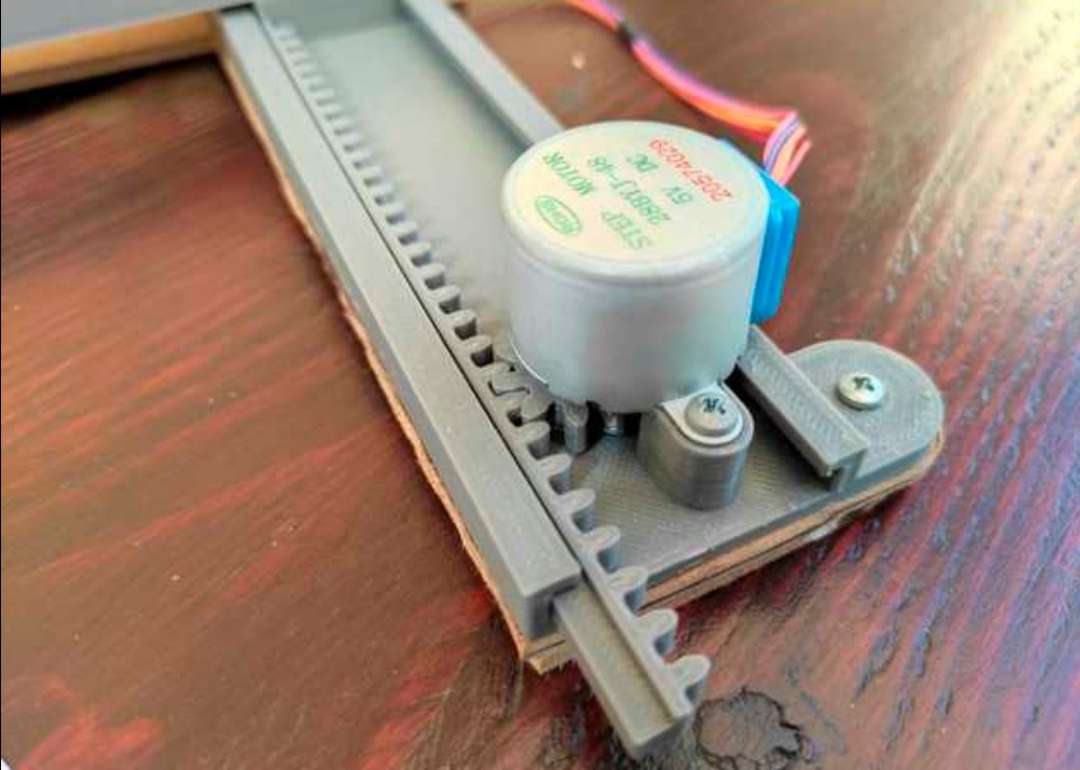

Step 3: assemble all the components with screws.
Step 4:connect the arduino board, motor shield and motors.
Step 5: write the arduino code and feed it into the board.
Step 6:install all the softwares and choose a image.
Step 7: convert the chosen image to gcode.
Step 8: now the bot is ready, give a image for trial.
Downloads |
||
|---|---|---|
|
|
circuit diagram cnc plotter | Download |
