Attendance Monitoring and Management System using RFID

Published Sep 18, 2022

100 hours to build

Intermediate

A smart method to detect and manage the attendance of the students using RFID tags

Components Used
RC522 RFID MFRC522 is a highly integrated reader/writer IC for contactless communication at 13.56MHz.	X 1
Arduino UNO Arduino UNO	X 1
DS1307 RTC DS1307 RTC DS1307 RTC DS1307 RTC	X 1
SD Card Module SD Card	X 1
ESP8266 WiFi Module ESP8266 is a system on chip (SoC) which provides WIFI capability for embedded applications. This enables internet connectivity to embedded applications. ESP8266 modules are mostly used in Internet of Things(IoT) applications.	X 1
Buzzer 5V Buzzer 5V	X 1
Red LED 5mm Standard LEDs - Through Hole Red Round	X 1
Green LED 5mm Standard LEDs - Through Hole LED HIGH BRIGHTNESS	X 1

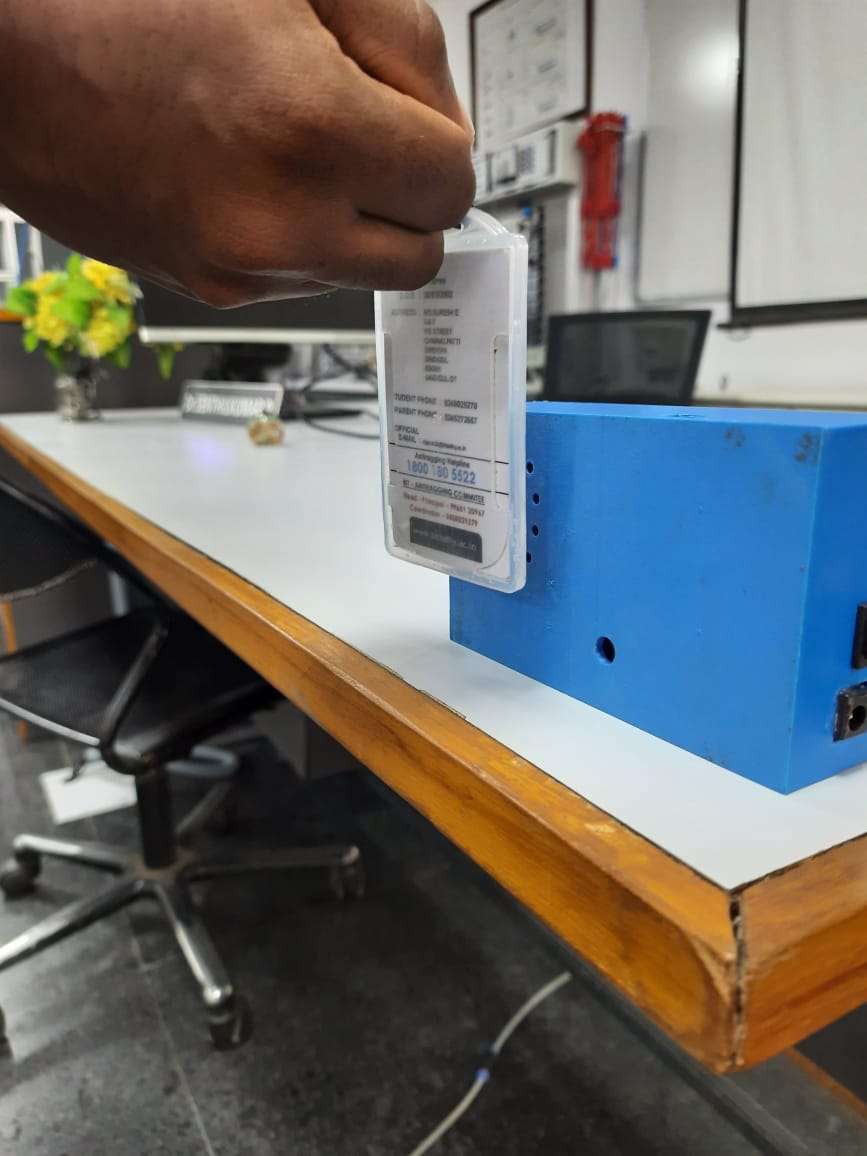

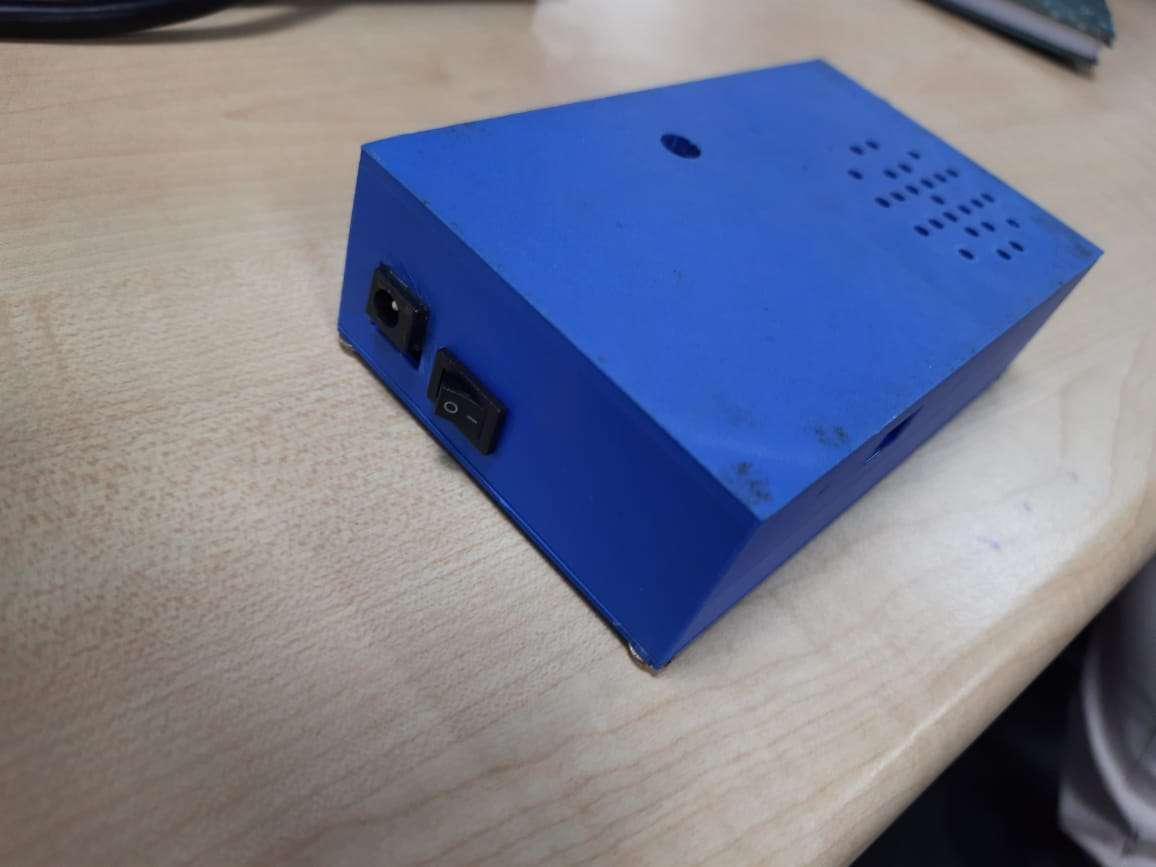

Description

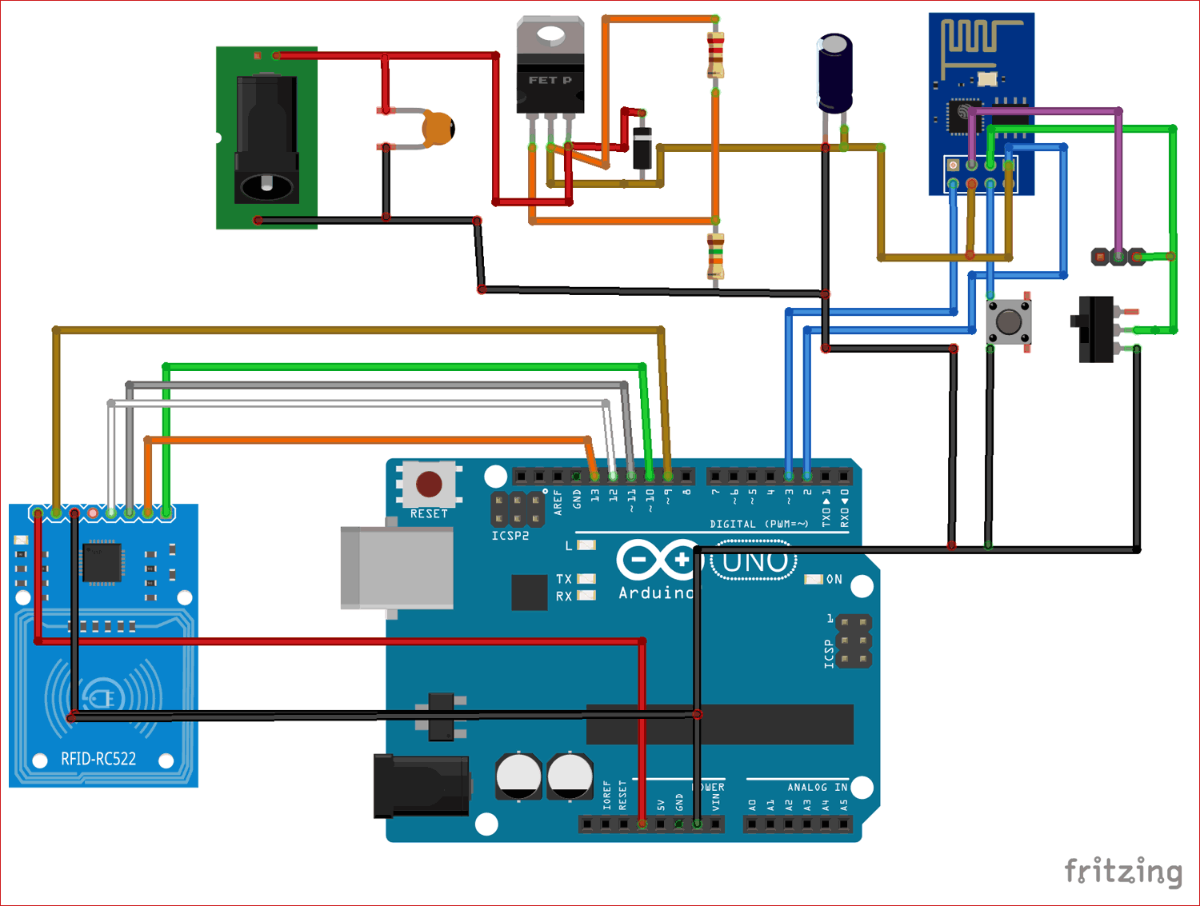

Schematic

The RC522 sensor is powered from a 5V pin of the Arduino UNO.
LM7809 supplies the constant 5V from an external source to the Arduino and Node MCU.
Two GPIO pins in Arduino are connected to the ESP 8266 for data communication.
If the RFID tag is read by the RC522 sensor, it sends a message to the Arduino and it turns sends the signal to the esp8266.
Message is transferred wirelessly to the respective Data Management system.
Here we used Google Sheet as a Management system that stores the messages in the sheet with respective time sessions.
In order to use this method, we must have an active internet connection to transfer data from esp8266 to sheets.
By this Method, we can record the Attendance of the student and manage it.
