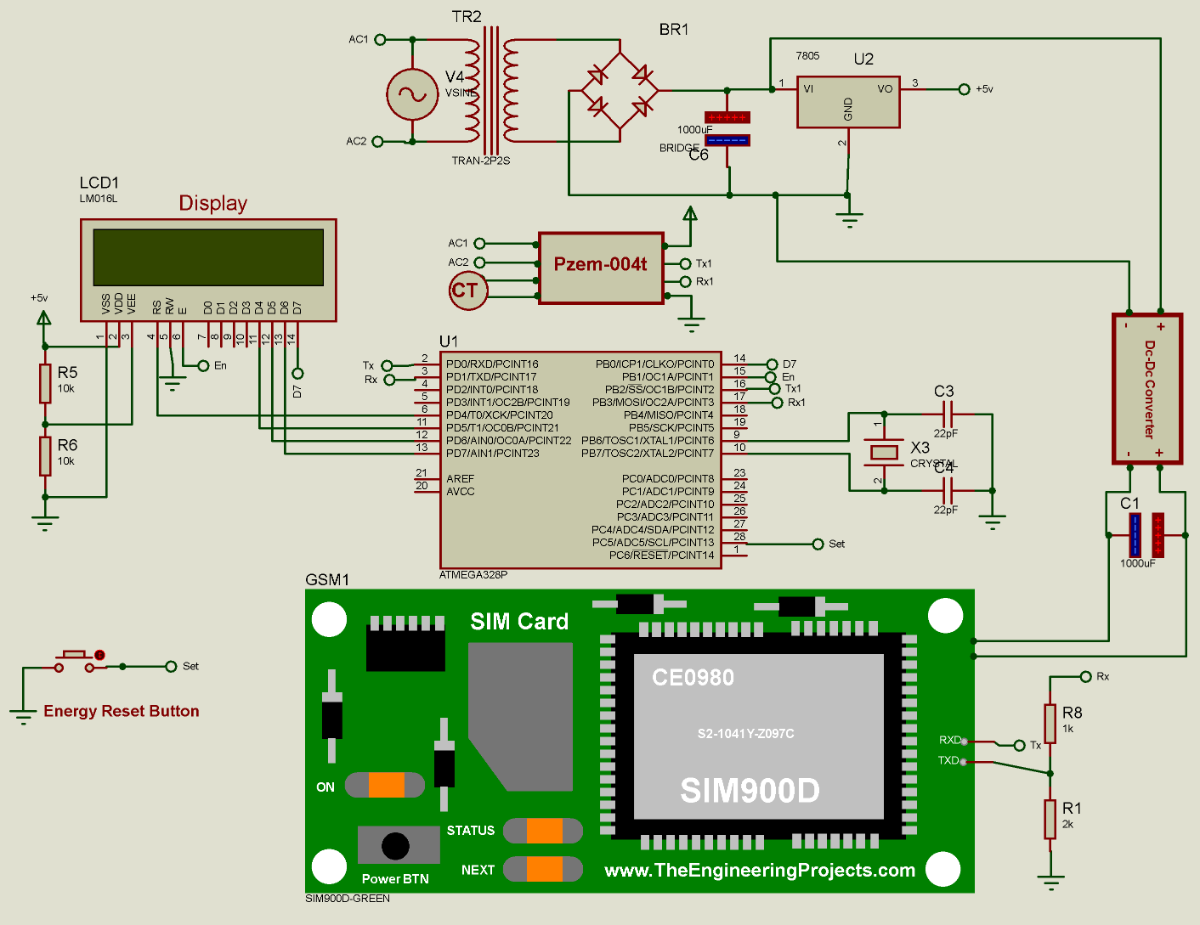

- Designed the circuit in PROTEUS SIMULATION SOFTWARE: The circuit diagram was designed using PROTEUS simulation software.

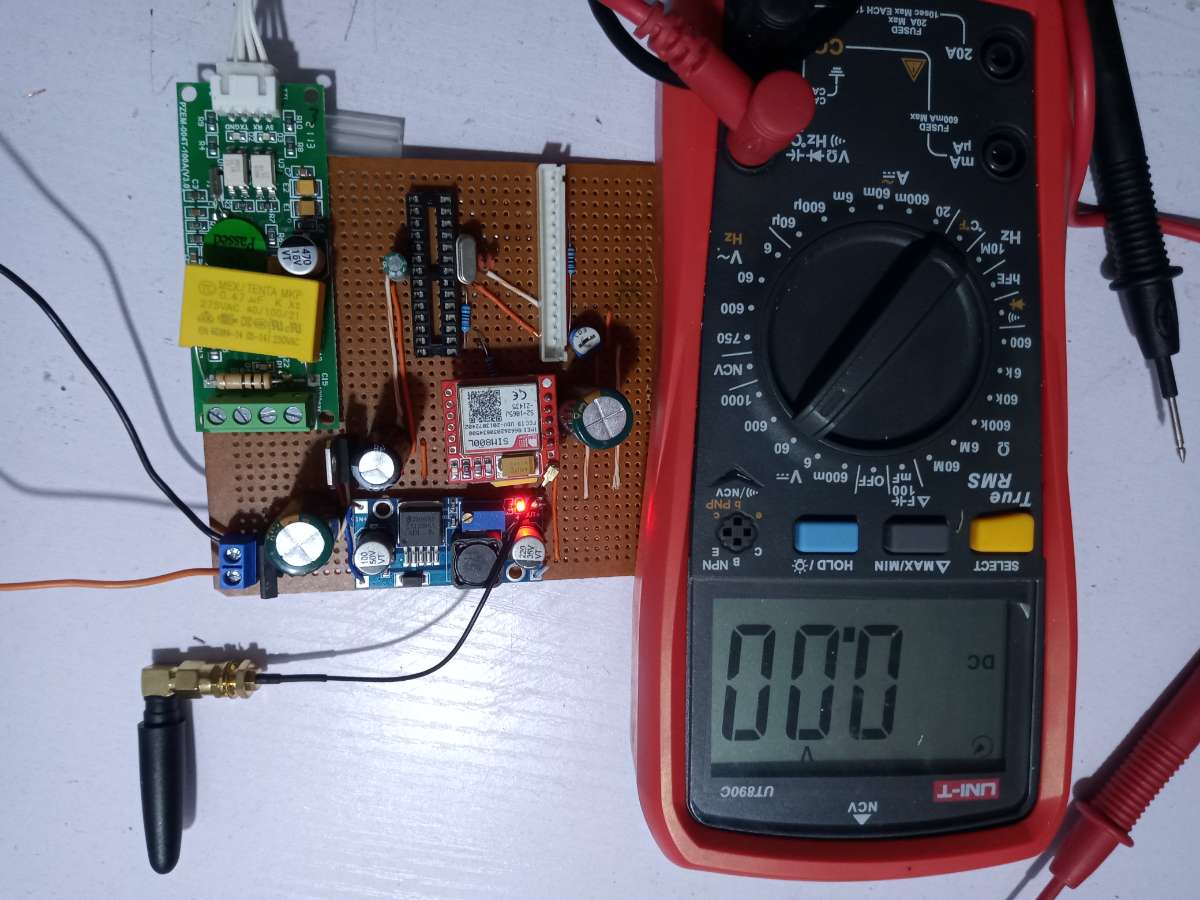

2. Components assembly: The circuit was assembled on a veroboard, firstly the power supply was built.
we have two power supplies; 5volts and 4.1vdc Power.
7805 was used to power the main circuit while DC DC converter was using to step down the 12v to 4.1v for the sim800l since the module's maximum operating voltage is 4.1v
Then other components was carefully soldered upon the board.

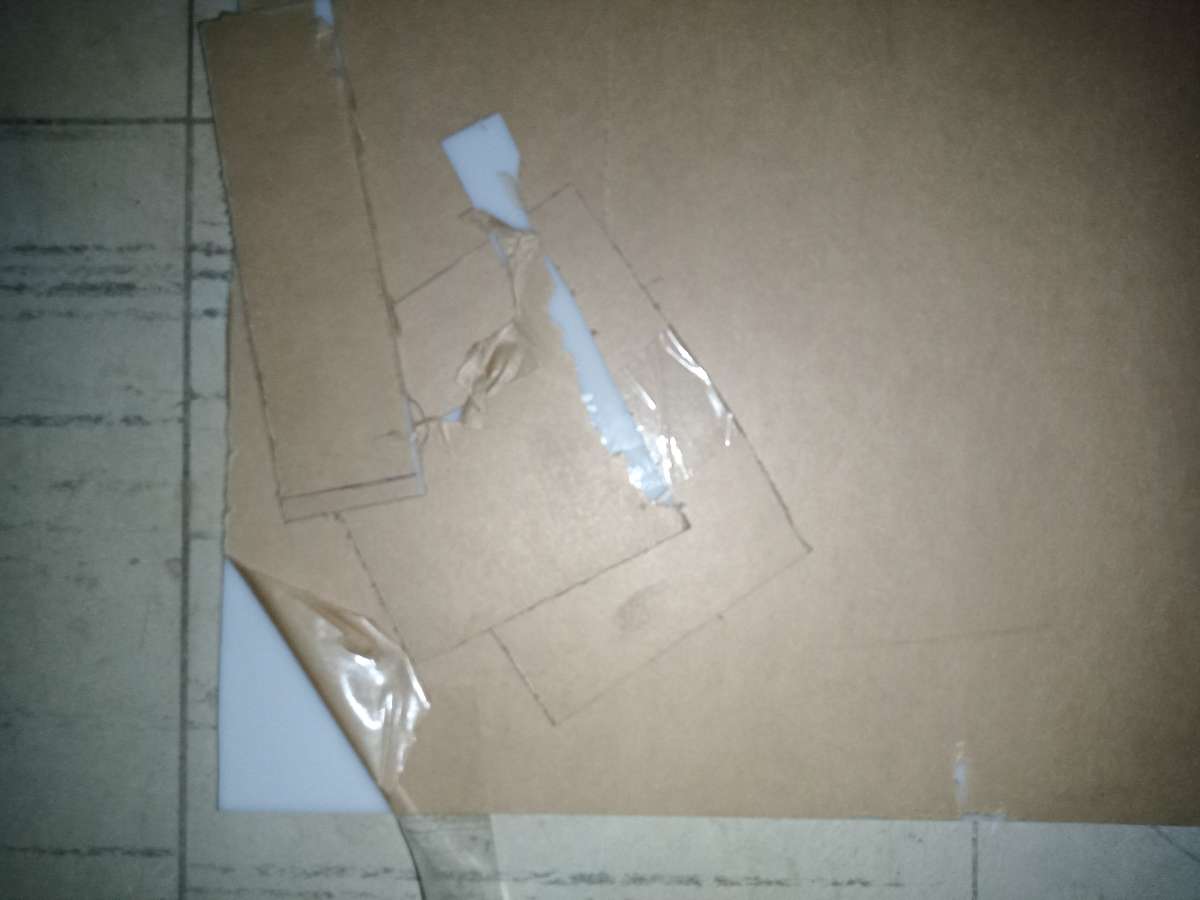

3. I constructed the case using perspex board

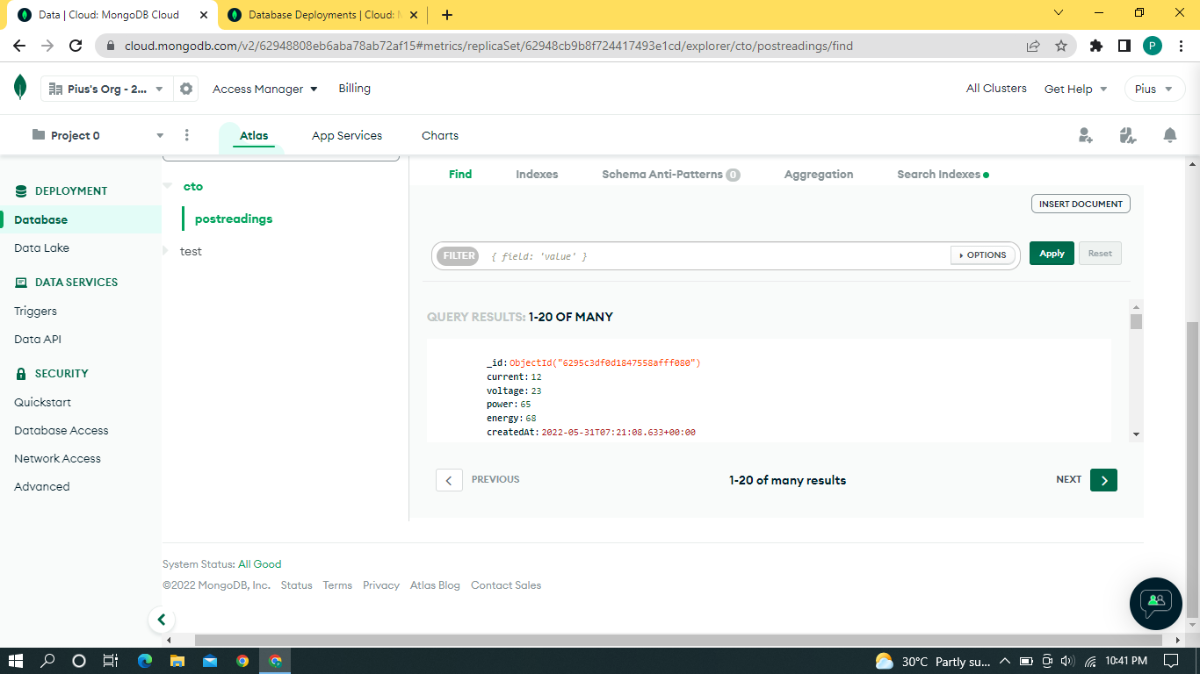

The database is MongoDB

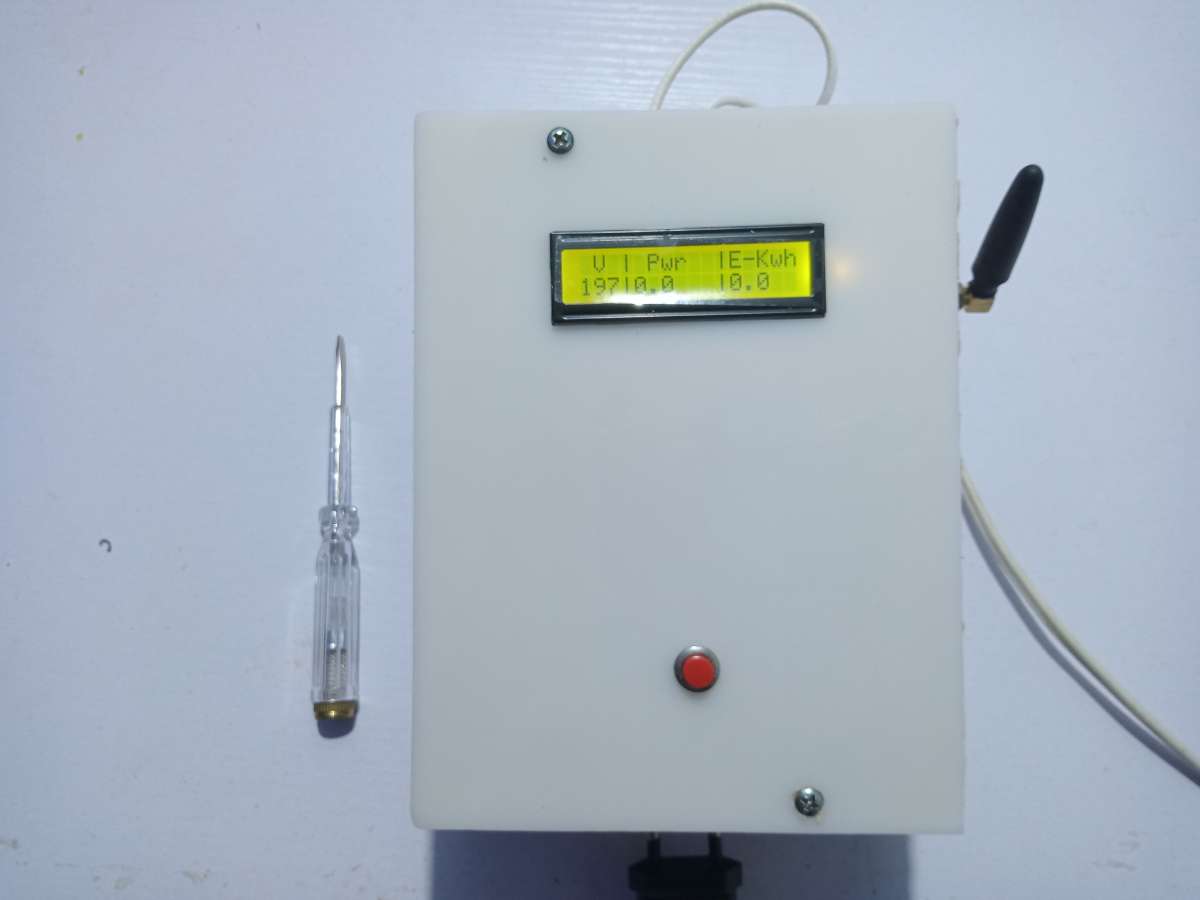

Finally the packaged project
