SMART GARBAGE MONITORING SYSTEM USING SOLAR

Published Sep 13, 2022
 Apache-2.0
 140 hours to build
 Intermediate
nodemcu

A smart way to monitor the level of garbage and maintaining a hygenic situation in the environment in a eco friendly way

display image

Components Used
ESP8266 WiFi Module
ESP8266 is a system on chip (SoC) which provides WIFI capability for embedded applications. This enables internet connectivity to embedded applications. ESP8266 modules are mostly used in Internet of Things(IoT) applications. 		X 1
AK9753 IR sensor
AK9753 is a low power and compact IR (infrared) sensor module. 		X 1
Micro USB Cable
USB Cables / IEEE 1394 Cables 3FT STRONG MCROUSB-B/USBACBL 		X 1
GPCB
PCBs & Breadboards PadBoard-3U 2 sided with plated holes 		X 1
Solar Panel 15V
Solar Panels & Solar Cells [email protected] Solar Module 		X 1
Soldering Iron Gun
Soldering Iron Gun 		X 1
Solder Wire
Solder Wire 		X 1
Digital Multimeters
Digital Multimeters Fluke 87V MAX DMM and PVLEAD1 MC4 Test Leads Bundle 		X 1
9V Battery
Consumer Battery & Photo Battery 9V RECTANGLE 		X 1
Description

Video

Here first the solar energy is collected form the solar panel.

It is stored in the 9 v rechargeable battery through LM7809 voltage regulator.

The node mcu (ESP 8266) is powered using the 9v rechargeable battery.

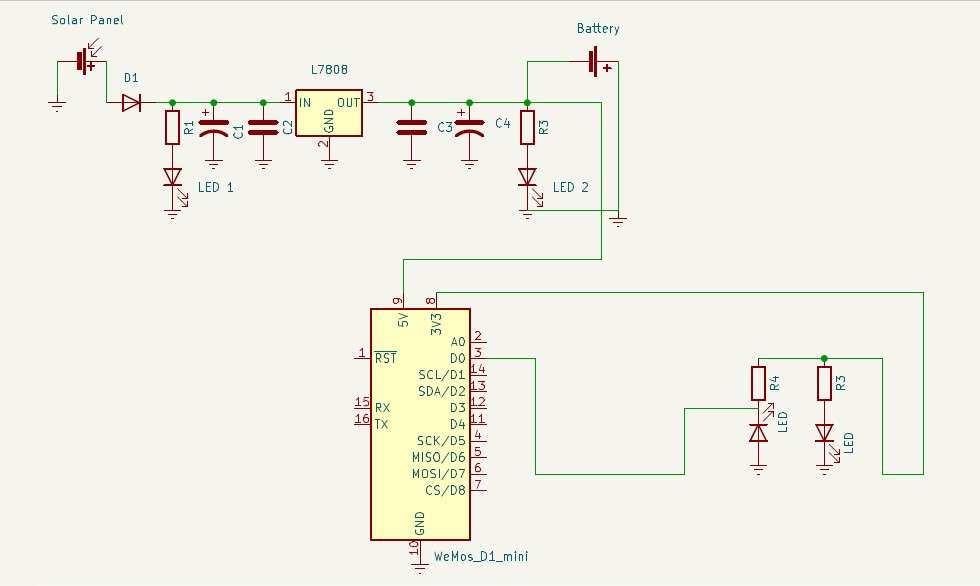

The connections are given as per the schematics.

Schematic

The Infrared sensor is connected to the D0 pin.

The power supply for the sensor is given through the 3.3v pin of the NodeMCU and respective ground is connected to the GND pin of the NodeMcu.

The The infrared sensors are used to detect the level of garbage in each bin, and it will send this information to the ESP8266 which acts as controller.

If the dustbin is full a SMS and call is sent to the mobile by using ESP8266.

The system makes use of ESP866 to transmit the data.

The system is powered by a 12V solar panel and a  9V rechargeable battery. The SMS consists of text related to all the garbage bins.
