smart light connected to the internet. It will dive deep into the internet of things and open up a world of home automation
Components Used |
||
|---|---|---|
| NodeMCU NodeMCUNodeMCU |
X 1 | |
| Relay Module Single Channel Relay Module Single Channel |
X 2 | |
| 7805 Voltage Regulator 7805 Voltage Regulator |
X 1 | |
| Diode 1N400x Diode 1N400x |
X 2 | |
| 2222A NPN Transistor 2222A NPN Transistor |
X 2 | |
| LED 3mm LED 3mm |
X 3 | |
| DC Barrel Jack DC Barrel Jack |
X 1 | |
| Screw and Stand-off Set Adafruit Accessories Black Nylon Screw + Stand-off Set |
X 2 | |
| Resistor 100 Ohms Metal Film Resistors - Through Hole 100ohm 1/4W 1% |
X 2 | |
| Male Berg strip Headers & Wire Housings 68000-105HTLF-B/S SR HDR 1*5 |
X 1 | |
| Female Berg strip Headers & Wire Housings RECEPT 20POS VERT .100 AU |
X 1 | |
Smart light connected to the internet. It will dive deep into the internet of things and open up a world of home automation!
This light is connected to Wi-Fi and can be controlled via the android application which is connected to google firebase.
so this tool can control house lights remotely anywhere and anytime as long as it is connected to the internet!
Downloads |
||
|---|---|---|
|
|

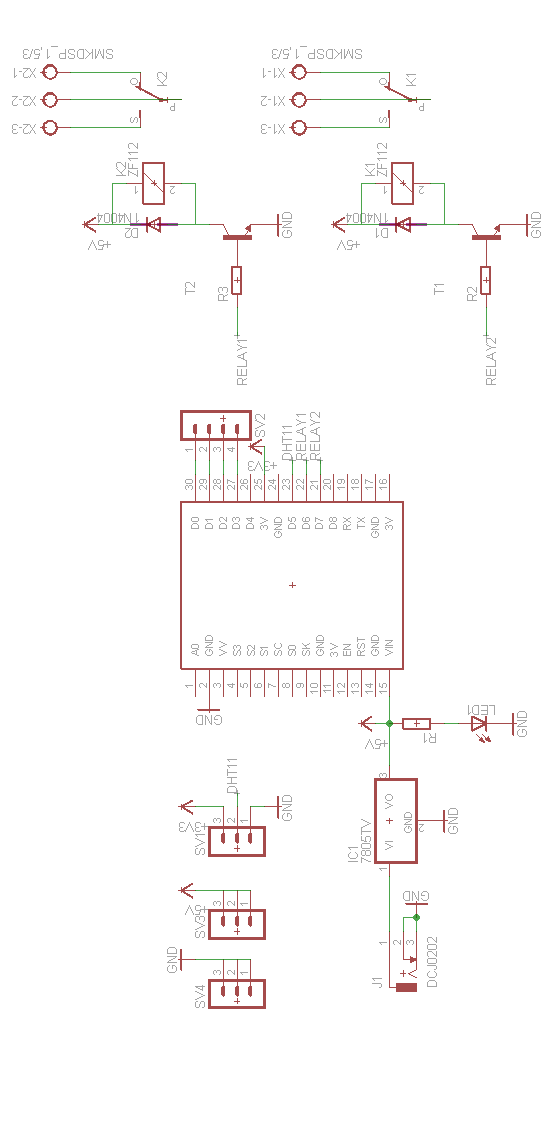

smart lamp schematic | Download |
