Machine Overheat Detection with Alert

Published Jun 22, 2022

MIT

5 hours to build

Intermediate

nodemcu

This proposed system is used to detect temperature of devices that are overheated. This project is very beneficial especially in places like factories or industries consisting of big machines where it is very necessary to take some action in case the machine is overheated.

Components Used
DS18B20 Temperature Sensors DS18B20 Temperature Sensors	X 1
ESP8266 WiFi Module ESP8266 is a system on chip (SoC) which provides WIFI capability for embedded applications. This enables internet connectivity to embedded applications. ESP8266 modules are mostly used in Internet of Things(IoT) applications.	X 1
SSD1306 OLED display OLED (Organic Graphic Display) display modules are compact and have high contrast pixels which make this display easily readable. They do not require backlight since the display creates its own light. Hence they consume less power. It is widely used in Smartphones, Digital display.	X 1
Mini Push Button Switch - 5-6mm Mini Push Button Switch - 5-6mm	X 1
LED 5mm LED 5mm	X 1
Buzzer 5V Buzzer 5V	X 1
Resistor 10K 0603 Resistor 10K 0603	X 1
9V Battery Consumer Battery & Photo Battery 9V RECTANGLE	X 1

Description

Process:

Step 1: We have to connect the Machine Overheat Detector model to the machine.

Step 2: The user have to set a fix temperature.

Step 3: The temperature sensor will sense the machine temperature.

Step 4: After sensing the temperature the temperature sensor will send the signal to the microcontroller.

Step 5: Microcontroller will then check that the temperature is above the set point or not.

Step 6: If the temperature is above the set point, the microcontroller will send a signal to the alert system.

Step 7: The alert system sends an alert to the user.

Step 8: This whole procedure will be seen by the user on a display.

Step 9: Manually the user can start the cooling fan to cool down the machine.

Block Diagram:

Video:

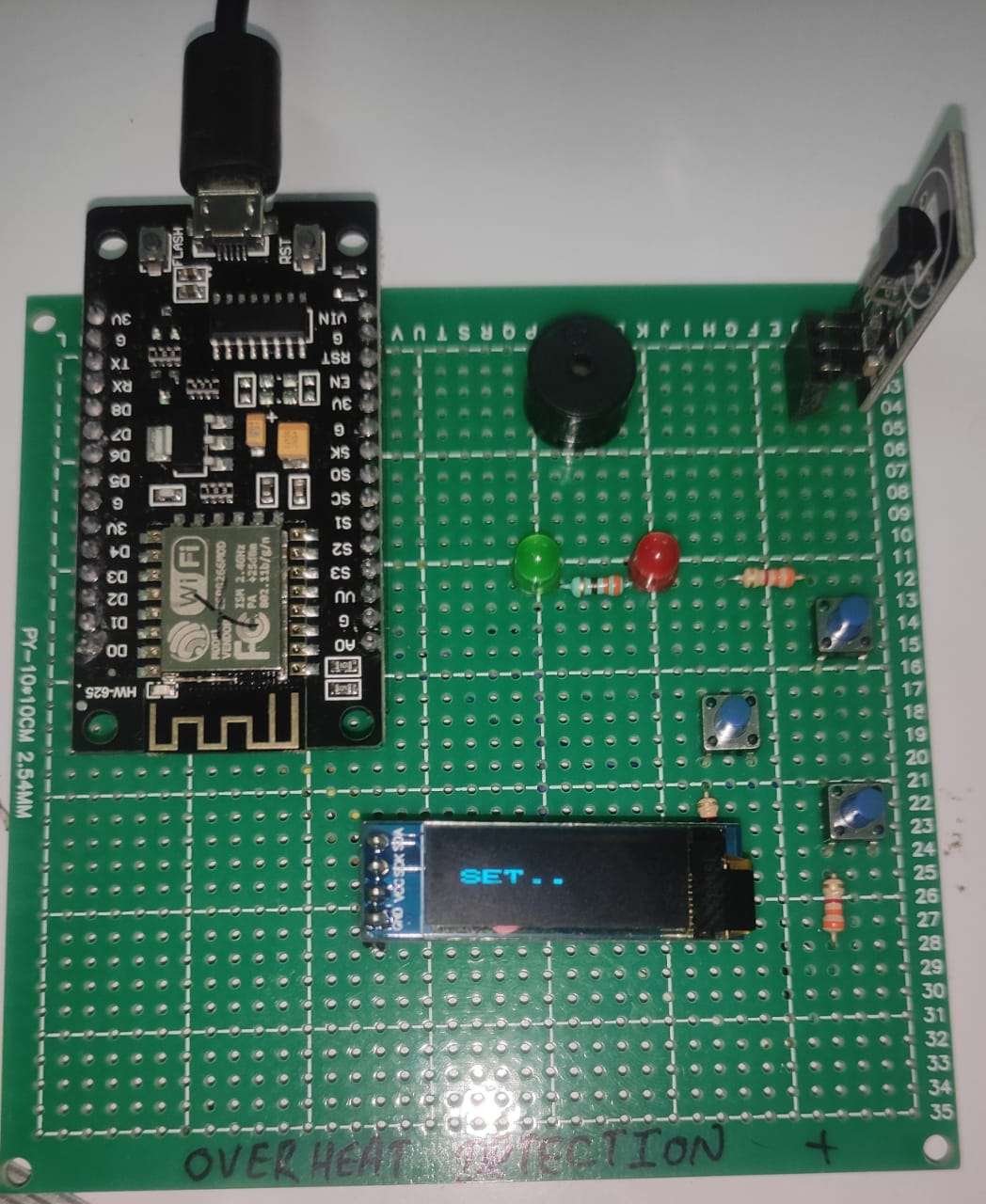

Images:

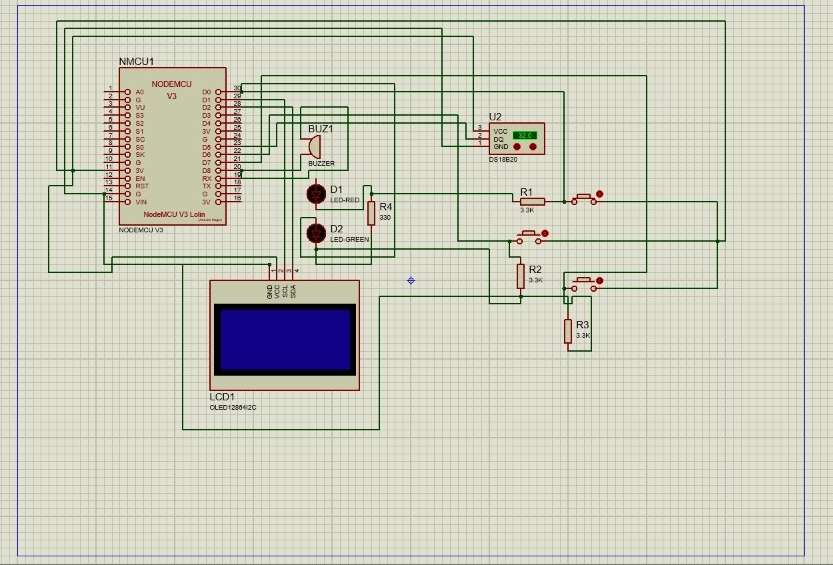

Schematics:

Applications

This project can be used in Industries, companies, and homes to monitor the high-temperature conditions.
Dehumidifier, testing and inspection equipment, consumer goods, automotive, automatic control, data loggers, weather stations, home appliances, humidity regulator, medical and other humidity measurement and control.
HVAC (Heating, Ventilation and Air Conditioning) Systems
Weather Stations
Medical Equipment for measuring humidity
Home Automation Systems
Automotive and other weather control applications
We can use this kind of project in such kind of farm that always need a constant temperature.
We can use it also in agricultural research.
In Industries

CONCLUSION

The project “Machine overheat detection with alert” has been successfully designed and tested. It has been developed by integrating features of all the hardware components used and software also in which we have used C++ language. Presence of every module has been reasoned out and placed carefully thus contributing to the best working of the unit. Secondly, using highly advanced microcontroller and with the help of growing technology the project has been successfully implemented. We conclude that by implementing these systems we can access the live data and control the device interfaced with our system.
