Introduction

   Variable frequency generator generates different waves like sine, square, triangular, saw-tooth. Also we can change the frequency of these waves by variable resistor. Four switches are provided for selecting wave.

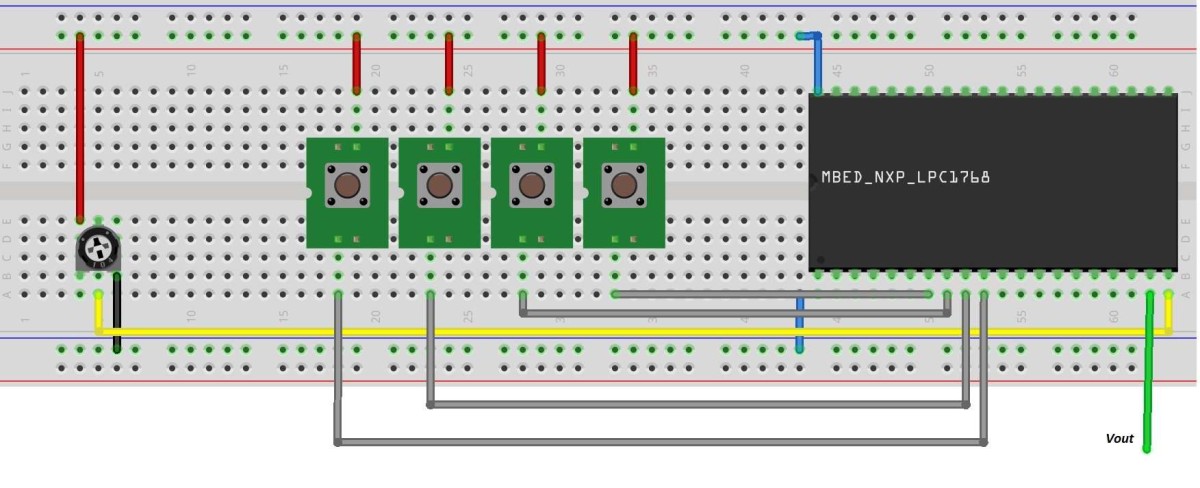

Circuit Diagram

Project Working

• Four switches are given to select the wave
• When button is pressed particular wave pattern is select given to that switch.
• Variable pot is provided to change frequency
• Inbuilt ADC is used to read the values of variable pot. To know more about ADC
• Inbuilt DAC is used to generate different wave-forms.To know more about DAC

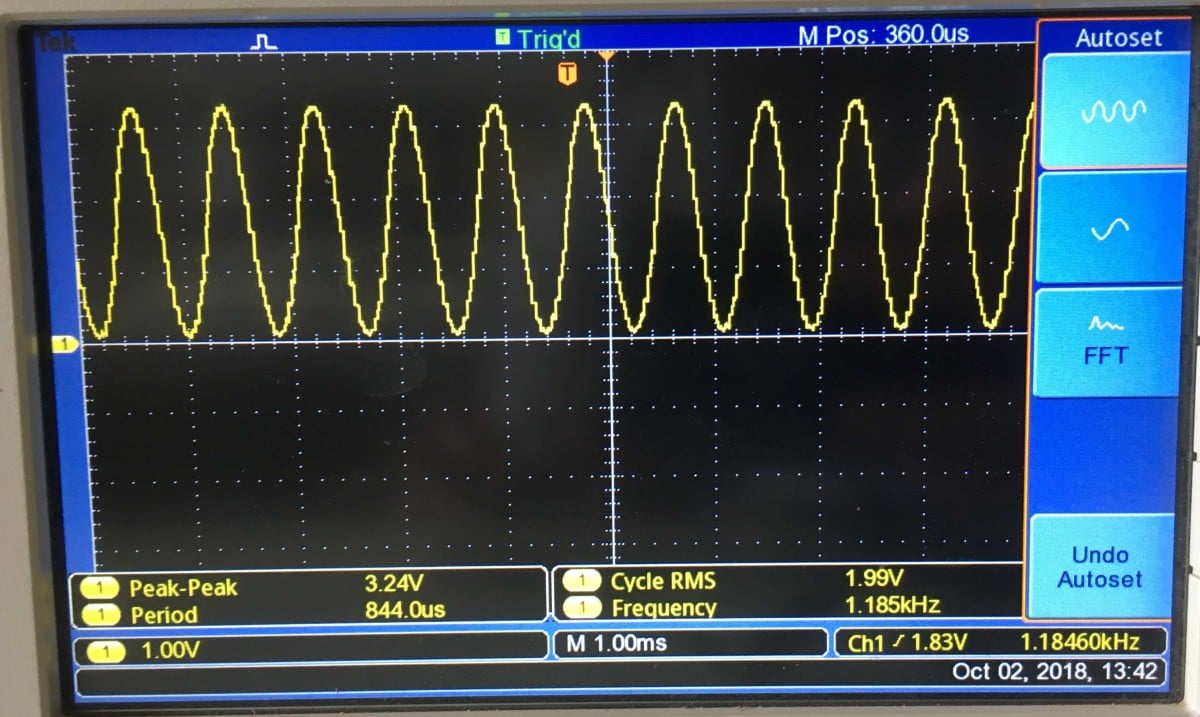

       Sine wave:

• When a1=1 sine wave is selected. We get value of potentiometer in range of 0 to 1, so convert it from 0 to 100 multiply it by 100.
• Put this value of 'A' in sine function to get different frequencies.

while(a1==1)    //For generating sine wave
  {
   A=Ain*100;
   for (n=0;n<A;n++)
   {
      Aout= 0.5 + 0.5*sin(n*2*pi/A);   //note the 0.5 V of offset since DAC outputs voltage between 0 and 3.3V
   }

   }

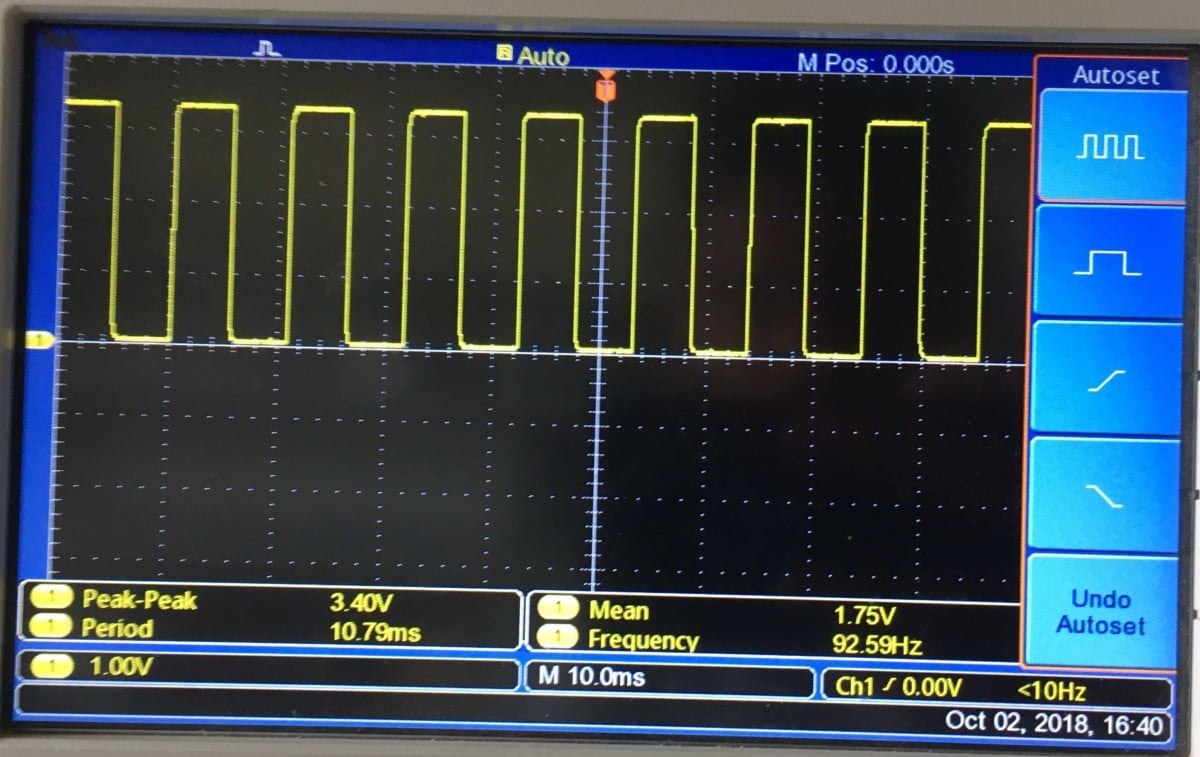

       Square wave:

• When a2 is '1' square wave is selected. To get different delay Ain is divided by 10 so we get delay in range of 0 to 0.1 Sec.

while(a2==1)        //for generating square wave
 {
  Aout=0X00;
  wait(Ain/10);

  Aout=0XFF;
  wait(Ain/10);

 }

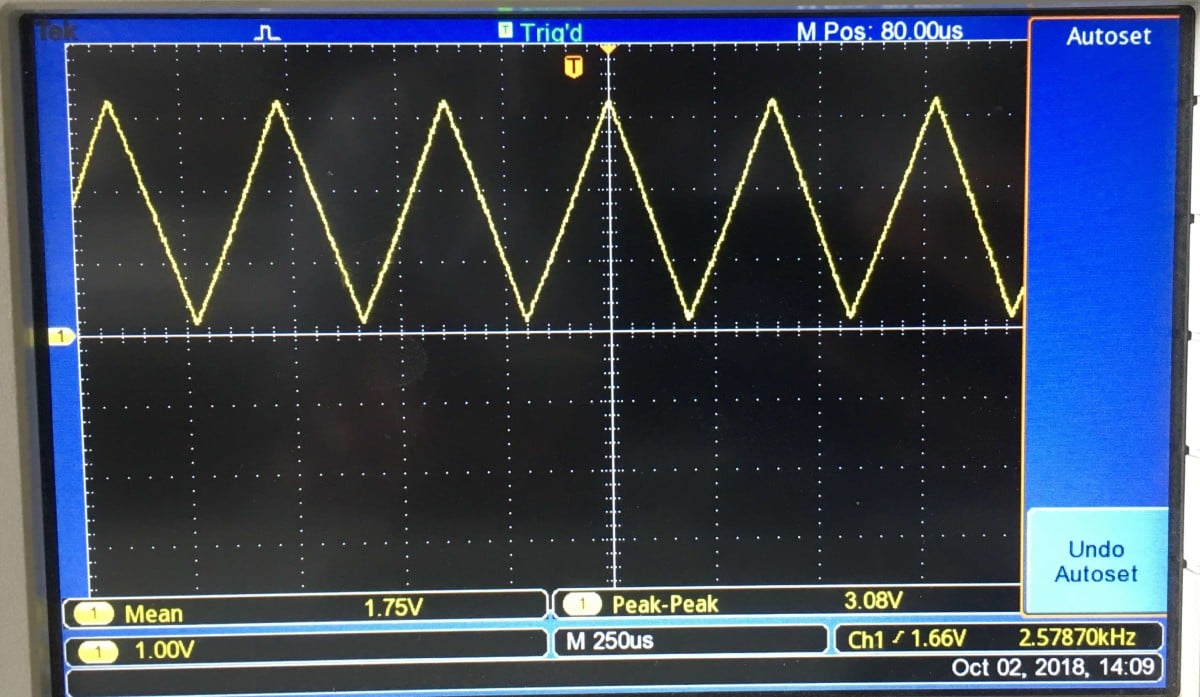

Triangular wave:

• We get value of potentiometer in range of 0 to 1, so convert it from 0 to 100 multiply Ain by 100 and get A.
• Divide i by A so that we get Aout in range of 0 to 1.

while(a3==1)            //for generating trianguler wave
 {
  A=Ain*100.00;
  for (i = 0.00; i < A; i++)
       {
           Aout = (float)i /A;
           wait(0.0001);
       }
   for (i = A-1.00; i > 0.00; i--)
       {
           Aout = (float)i / A;
           wait(0.0001);
       }
 }

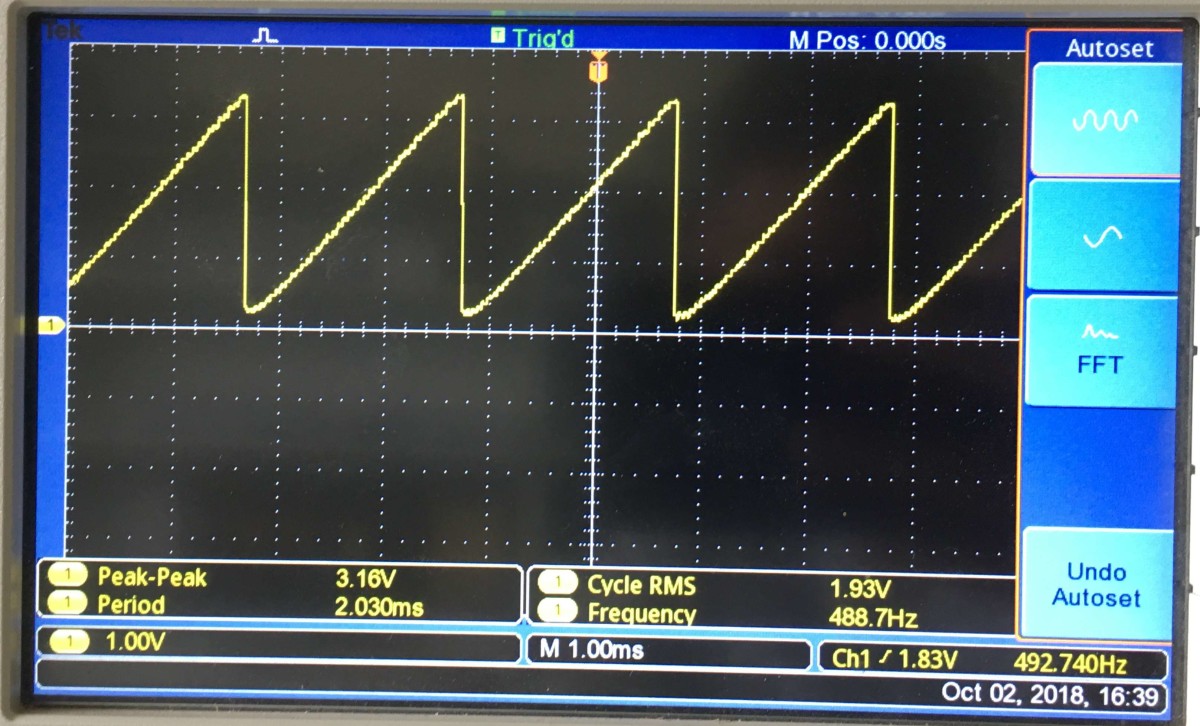

       Saw-tooth wave:

• Divide i by (Ain*100) to get Aout in range of 0 to 1.

while(a4==1)            //for generating saw-tooth wave
 {

  for (i = 0.00; i < (Ain*100); i++)
 {
           Aout = (float)i / (Ain*100);
 }
 }

Video
