fix jumper wires

Published Jun 19, 2024
 1 hours to build
 Beginner

describes how to fix issue of loose female jumper wires.

display image

Components Used

Female to Female Jumper Wire
Jumper Wires Mach pin jumper wires
1
Connecting Wire Jumper Wires
Connecting Wire Breadboard wires
1
Male to Male Jumper Wire
Jumper Wires Mach pin jumper wires
1
Male to Female Jumper Wire
Jumper Wires Mach pin jumper wires
1
Description

here's easy guide to fix loose female jumper wires.

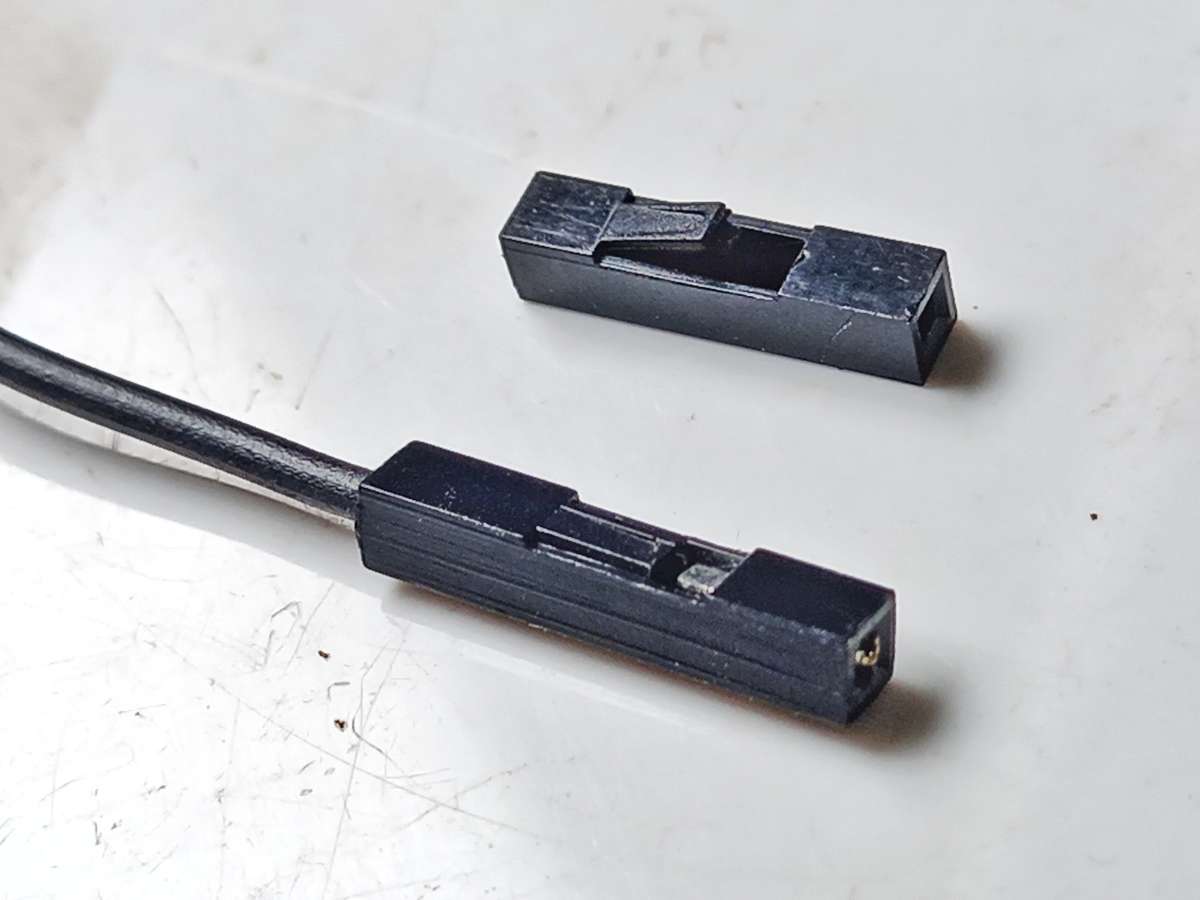

  1. Remove cap :  using male headers sharp point, bend the cap lock, as shown in image.

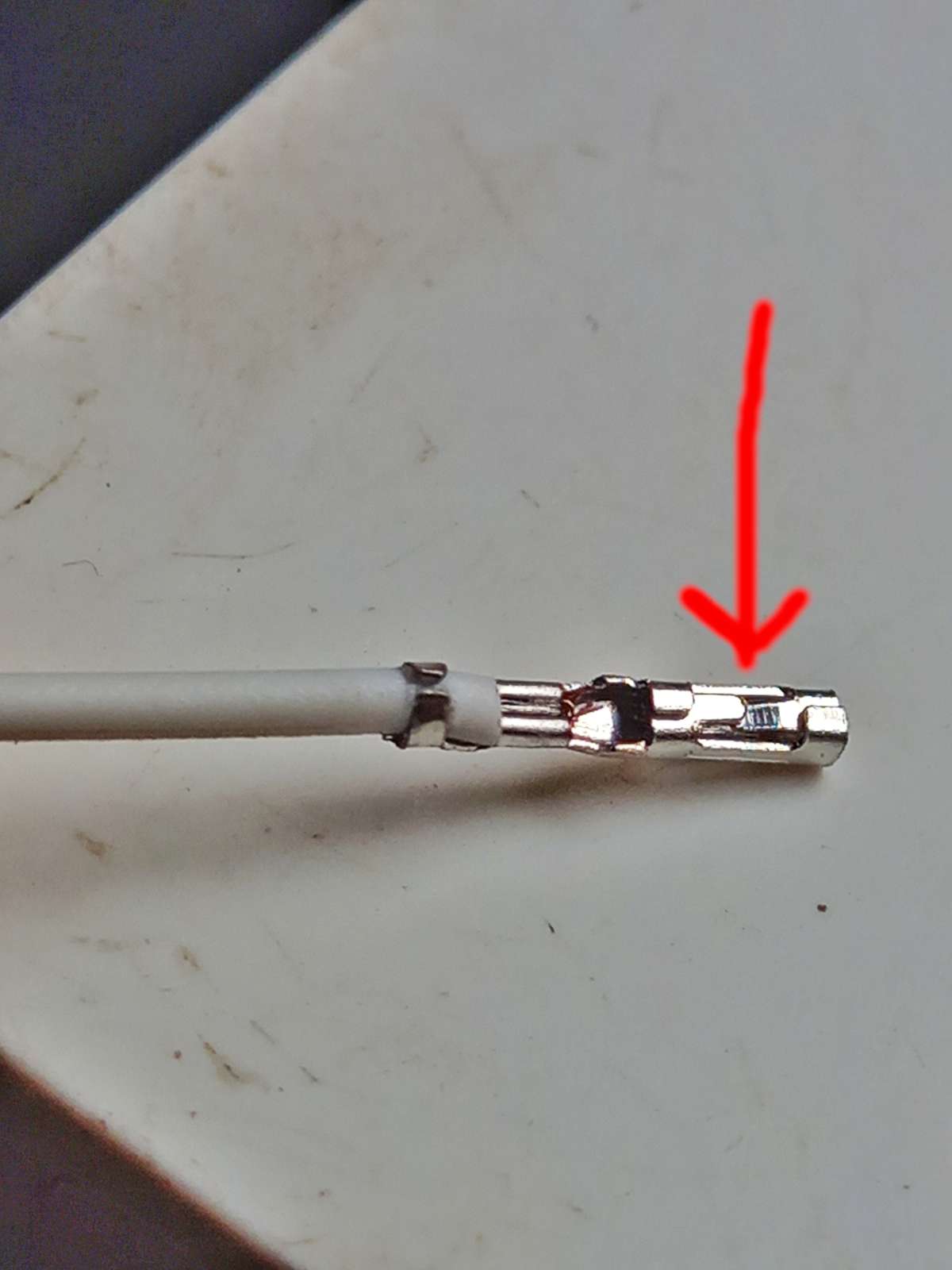

    2. press pin lock : press the lock that holds male header, the more you press it, the tighter it gets

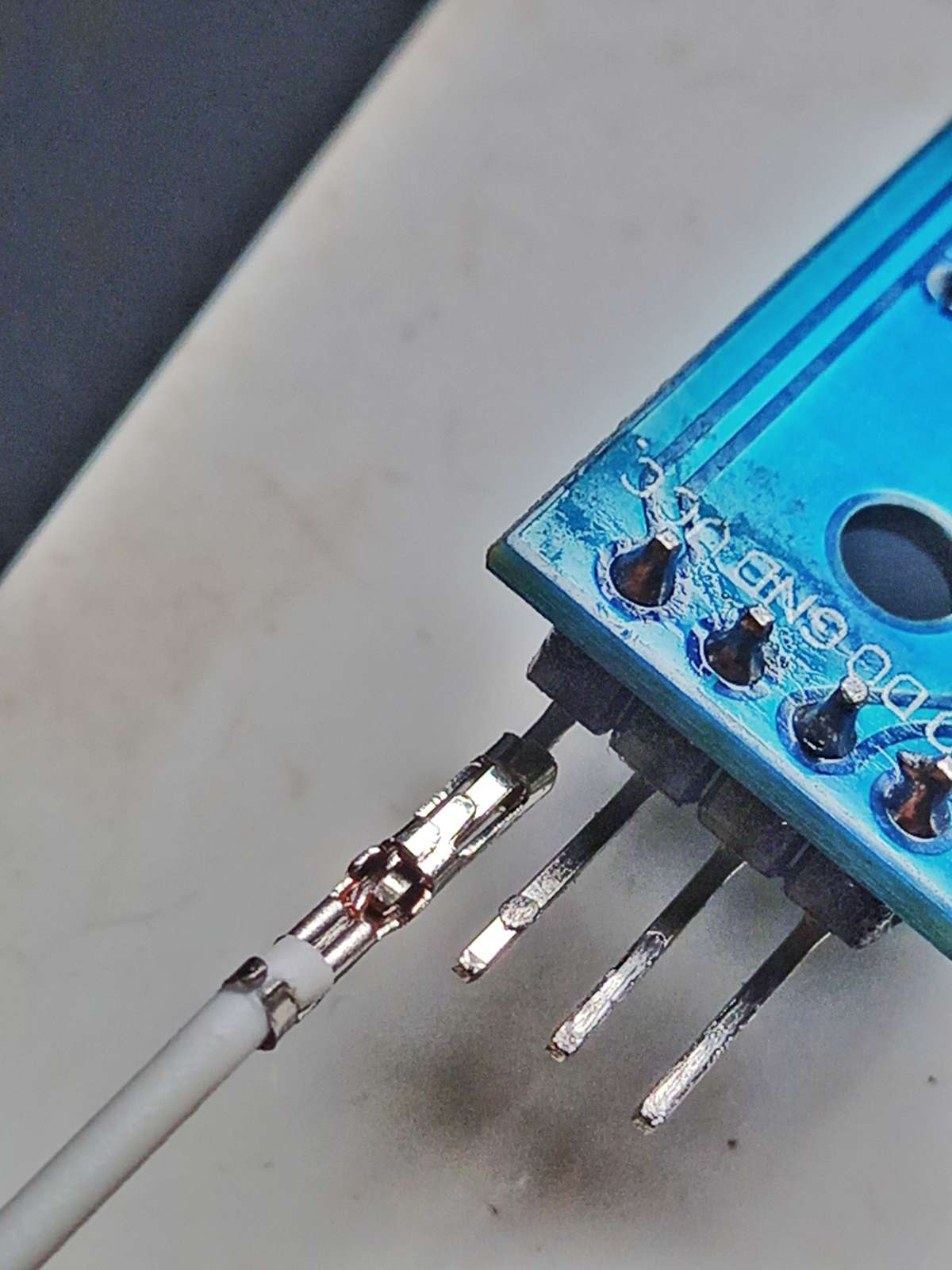

    3. test  : on male headers, try testing the grip and connection of pin, & if felt loose, tighten press pin lock even more.

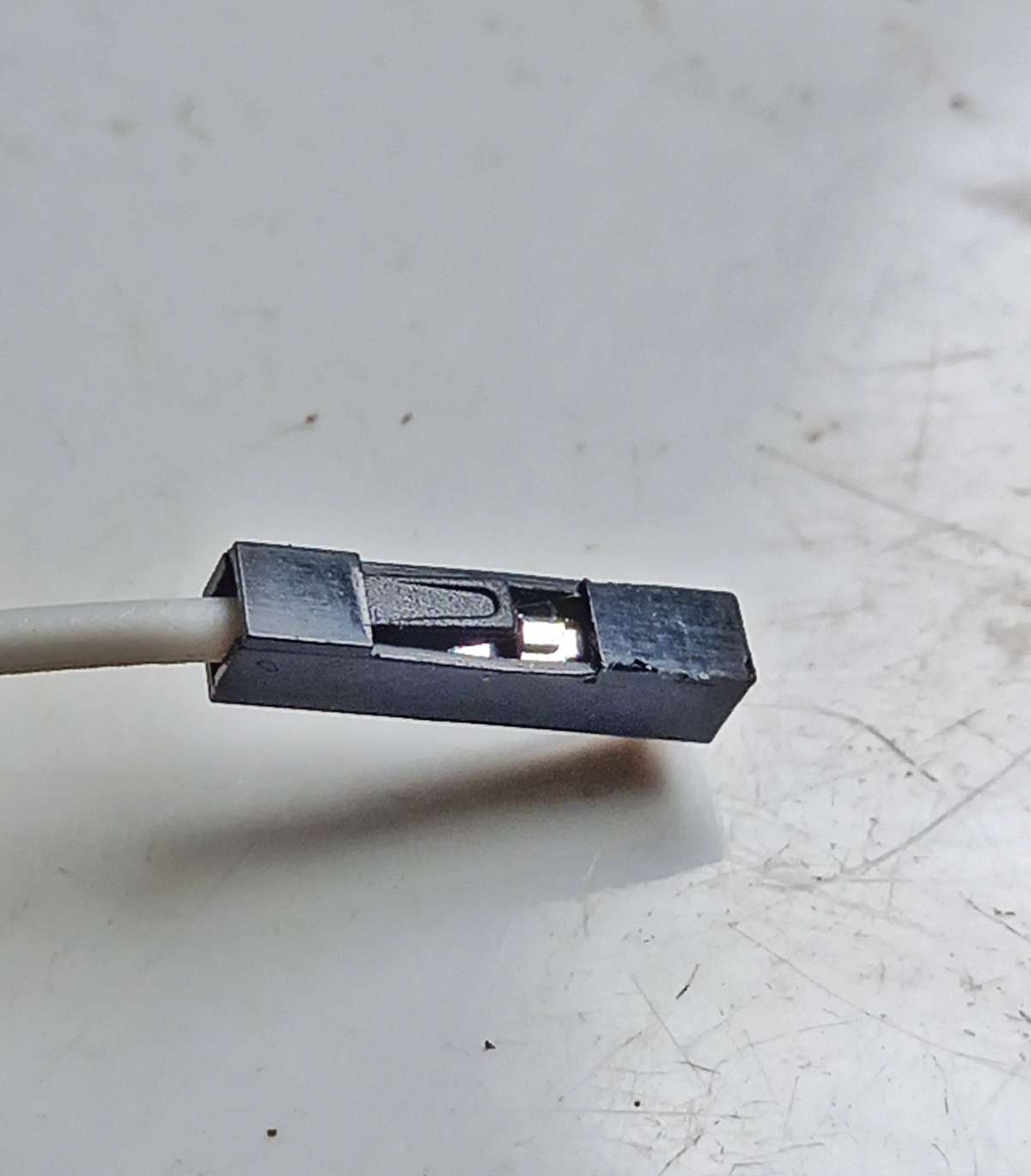

    4. put cap back : finally now put cap back. press the cap lock, so that cap doesn't fall off accidently.
