Introduction

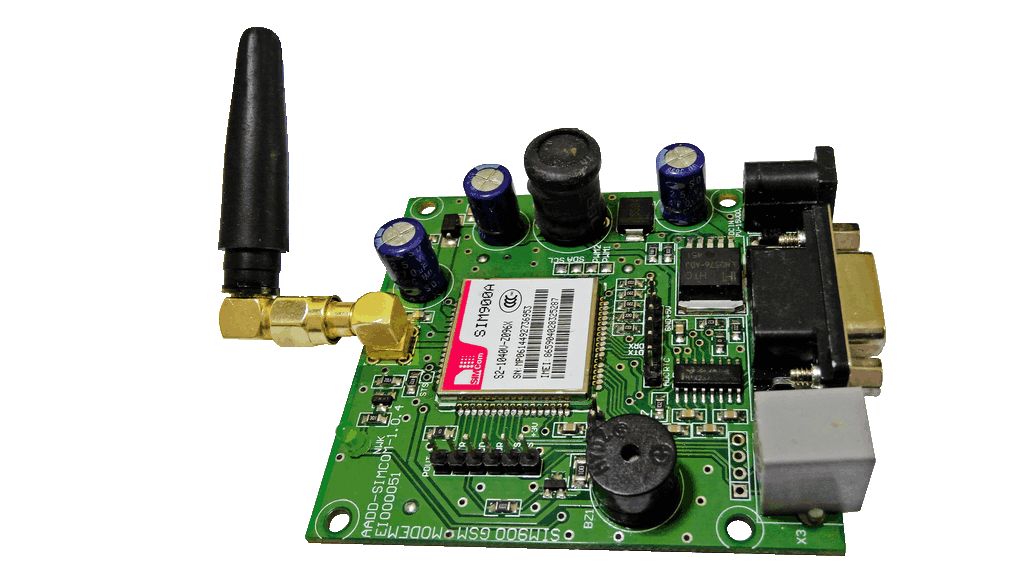

 Sim900A GSM Module

Global System for Mobile communication (GSM) is digital cellular system used for mobile devices. It is an international standard for mobile which is widely used for long distance communication.

There are various GSM modules available in the market like SIM900, SIM700, SIM800, SIM808, SIM5320 etc.

SIM900A module allows users to send/receive data over GPRS, send/receive SMS and make/receive voice calls.

The GSM/GPRS module uses UART communication to communicate with microcontroller or PC terminal. AT commands are used to configure the module in different modes and to perform various functions like calling, posting data to a site, etc.

For more information about Sim900A and how to use it, refer the topic Sim900A GSM/GPRS Module in the sensors and modules section.

For information about UART in LPC2148 and how to use it, refer the topic UART in LPC2148 in the ARM7-LPC2148 inside section.

Interfacing Diagram

Interfacing Sim900A GSM Module with LPC2148

Application

Let’s design a little application in which user will receive SMS “call me” and immediately user will call the sender of the message.

Program

/*
  GSM interfacing with ARM LPC2148(ARM7)
  http://www.electronicwings.com/arm7/sim900a-gsm-module-interfacing-with-lpc2148
*/

#include <lpc214x.h>
#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>
#include <stdbool.h>
#include <string.h>

__irq void UART0_Interrupt(void);

void GSM_Begin(void);
void GSM_Calling(char *);
void GSM_HangCall(void);
void GSM_Response(void);
void GSM_Response_Display(void);
void GSM_Msg_Read(int);
bool GSM_Wait_for_Msg(void);
void GSM_Msg_Display(void);
void GSM_Msg_Delete(unsigned int);
void GSM_Send_Msg(char* , char*);
void GSM_Delete_All_Msg(void);

char buff[160];		/* buffer to store responses and messages */
bool status_flag = false;	/* for checking any new message */
volatile int buffer_pointer;
char Mobile_no[14];		/* store mobile no. of received message */
char message_received[60];		/* save received message */
int position = 0;	/* save location of current message */

void delay_ms(uint16_t j)
{
    uint16_t x,i;
	for(i=0;i<j;i++)
	{
    for(x=0; x<6000; x++);    /* loop to generate 1 milisecond delay with Cclk = 60MHz */
	}
}

void UART0_init(void)
{
	PINSEL0 = PINSEL0 | 0x00000005;	/* Enable UART0 Rx0 and Tx0 pins of UART0 */
	U0LCR = 0x83;	/* DLAB = 1, 1 stop bit, 8-bit character length */
	U0DLM = 0x00;	/* For baud rate of 9600 with Pclk = 15MHz */
	U0DLL = 0x61;	/* We get these values of U0DLL and U0DLM from formula */
	U0LCR = 0x03; /* DLAB = 0 */
	U0IER = 0x00000001; /* Enable RDA interrupts */
}

void UART0_TxChar(char ch) /* A function to send a byte on UART0 */
{
	U0IER = 0x00000000; /* Disable RDA interrupts */
	U0THR = ch;
	while( (U0LSR & 0x40) == 0 );	/* Wait till THRE bit becomes 1 which tells that transmission is completed */
	U0IER = 0x00000001; /* Enable RDA interrupts */
}

void UART0_SendString(char* str) /* A function to send string on UART0 */
{
	U0IER = 0x00000000; /* Disable RDA interrupts */
	uint8_t i = 0;
	while( str[i] != '\0' )
	{
		UART0_TxChar(str[i]);
		i++;
	}
	U0IER = 0x00000001; /* Enable RDA interrupts */
}

__irq void UART0_Interrupt(void)
{
	buff[buffer_pointer] = U0RBR;	/* copy UDR(received value) to buffer */
	buffer_pointer++;
	status_flag = true;						            /* flag for new message arrival */
	VICVectAddr = 0x00;
}

int main(void)
{
	buffer_pointer = 0;
	bool is_msg_arrived;
	memset(message_received, 0, 60);
	VICVectAddr0 = (unsigned) UART0_Interrupt;	/* UART0 ISR Address */
	VICVectCntl0 = 0x00000026;	/* Enable UART0 IRQ slot */
	VICIntEnable = 0x00000040;	/* Enable UART0 interrupt */
	VICIntSelect = 0x00000000;	/* UART0 configured as IRQ */
	UART0_init();
	//UART0_SendString("GSM Initializing...");
	delay_ms(3000);
	GSM_Begin();	/* check GSM responses and initialize GSM */

	while (1)
		{
			/*check if any new message received */
			if(status_flag == true)
				{
						is_msg_arrived = GSM_Wait_for_Msg();	/*check for message arrival*/
						if(is_msg_arrived == true)
						{
								//UART0_SendString("New message");	/* new message arrived */
								delay_ms(1000);
								GSM_Msg_Read(position);		/* read arrived message */
								delay_ms(3000);

							/*check if received message is "call me" */
								if(strstr( message_received,"call me"))
									{
											GSM_Calling(Mobile_no);		/* call sender of message */
											//UART0_SendString("Calling...");
											delay_ms(15000);
											GSM_HangCall();		/* hang call */
											//UART0_SendString("Hang Call");
											delay_ms(1000);
									}

								GSM_Msg_Delete(position);		/* to save SIM memory delete current message */
								//UART0_SendString("Clear msg");
								GSM_Response();
								delay_ms(1000);
						}
					is_msg_arrived = false;
					status_flag = false;
				}
			UART0_SendString("Waiting for msg");
			memset(Mobile_no, 0, 14);
			memset(message_received, 0, 60);
		}
}

void GSM_Begin(void)
{
	while(1)
	{
		UART0_SendString("ATE0\r\n");		/* send ATE0 to check module is ready or not */
		delay_ms(500);
		if(strstr(buff,"OK"))
		{
			GSM_Response();		/* get Response */
			memset(buff,0,160);
			break;
		}
		else
		{
			//UART0_SendString("Error");
		}
	}
	delay_ms(1000);

	//UART0_SendString("Text Mode");
	UART0_SendString("AT+CMGF=1\r\n");	/* select message format as text */
	GSM_Response();
	delay_ms(1000);
}

void GSM_Msg_Delete(unsigned int position)
{
	buffer_pointer=0;
	char delete_cmd[20];
	sprintf(delete_cmd,"AT+CMGD=%d\r\n",position);	/* delete message at specified position */
	UART0_SendString(delete_cmd);
}

void GSM_Delete_All_Msg(void)
{
	UART0_SendString("AT+CMGDA=\"DEL ALL\"\r\n");	/* delete all messages of SIM */
}

bool GSM_Wait_for_Msg(void)
{
	char msg_location[4];
	int i;
	delay_ms(500);
	buffer_pointer=0;

	while(1)
	{
		if(buff[buffer_pointer]=='\r' || buff[buffer_pointer]== '\n')	/*eliminate "\r \n" which is start of string */
		{
			buffer_pointer++;
		}
		else
			break;
	}

	if(strstr(buff,"CMTI:"))		/* "CMTI:" to check if any new message received */
	{
		while(buff[buffer_pointer]!= ',')
		{
			buffer_pointer++;
		}
		buffer_pointer++;

		i=0;
		while(buff[buffer_pointer]!= '\r')
		{
			msg_location[i]=buff[buffer_pointer];		/* copy location of received message where it is stored */
			buffer_pointer++;
			i++;
		}

		/* convert string of position to integer value */
		position = atoi(msg_location);

		memset(buff,0,strlen(buff));
		buffer_pointer=0;

		return true;
	}
	else
	{
		return false;
	}
}

void GSM_Send_Msg(char *num,char *sms)
{
	char sms_buffer[35];
	buffer_pointer=0;
	sprintf(sms_buffer,"AT+CMGS=\"%s\"\r\n",num);
	UART0_SendString(sms_buffer);		/*send command AT+CMGS="Mobile No."\r */
	delay_ms(200);
	while(1)
	{
		if(buff[buffer_pointer]==0x3e)		/* wait for '>' character*/
		{
			buffer_pointer = 0;
			memset(buff,0,strlen(buff));
			UART0_SendString(sms);		/* send msg to given no. */
			UART0_TxChar(0x1a);		/* send Ctrl+Z then only message will transmit*/
			break;
		}
		buffer_pointer++;
	}
	delay_ms(300);
	buffer_pointer = 0;
	memset(buff,0,strlen(buff));
	memset(sms_buffer,0,strlen(sms_buffer));
}

void GSM_Calling(char *Mob_no)
{
	char call[20];
	sprintf(call,"ATD%s;\r\n",Mob_no);
	UART0_SendString(call);		/* send command ATD<Mobile_No>; for calling*/
}

void GSM_HangCall(void)
{
	UART0_SendString("ATH\r\n");		/*send command ATH\r to hang call*/

}

void GSM_Response(void)
{
	unsigned int timeout=0;
	int CRLF_Found=0;
	char CRLF_buff[2];
	int Response_Length=0;
	while(1)
	{
		if(timeout>=60000)		/*if timeout occur then return */
		return;
		Response_Length = strlen(buff);
		if(Response_Length)
		{
			delay_ms(1);
			timeout++;
			if(Response_Length==strlen(buff))
			{
				for(int i=0;i<Response_Length;i++)
				{
					memmove(CRLF_buff,CRLF_buff+1,1);
					CRLF_buff[1]=buff[i];
					if(strncmp(CRLF_buff,"\r\n",2))
					{
						if(CRLF_Found++==2)		/* search for \r\n in string */
						{
							GSM_Response_Display();		/* display response */
							return;
						}
					}

				}
				CRLF_Found = 0;

			}

		}
		delay_ms(1);
		timeout++;
	}
	//status_flag = false;
}

void GSM_Response_Display(void)
{
	buffer_pointer = 0;
	while(1)
	{
		if(buff[buffer_pointer]== '\r' || buff[buffer_pointer]== '\n')		/* search for \r\n in string */
		{
			buffer_pointer++;
		}
		else
			break;
	}


	while(buff[buffer_pointer]!='\r')		/* display response till "\r" */
	{
		UART0_TxChar(buff[buffer_pointer]);
		buffer_pointer++;
	}
	buffer_pointer=0;
	memset(buff,0,strlen(buff));
}

void GSM_Msg_Read(int position)
{
	char read_cmd[10];
	sprintf(read_cmd,"AT+CMGR=%d\r\n",position);
	UART0_SendString(read_cmd);		/* read message at specified location/position */
	GSM_Msg_Display();		/* display message */
}

void GSM_Msg_Display(void)
{
	delay_ms(500);
	if(!(strstr(buff,"+CMGR")))		/*check for +CMGR response */
	{
		UART0_SendString("No message");
	}
	else
	{
		buffer_pointer = 0;

		while(1)
		{
			if(buff[buffer_pointer]=='\r' || buff[buffer_pointer]== 'n')		/*wait till \r\n not over*/
			{
				buffer_pointer++;
			}
			else
			break;
		}

		/* search for 1st ',' to get mobile no.*/
		while(buff[buffer_pointer]!=',')
		{
			buffer_pointer++;
		}
		buffer_pointer = buffer_pointer+2;

		/* extract mobile no. of message sender */
		for(int i=0;i<=12;i++)
		{
			Mobile_no[i] = buff[buffer_pointer];
			buffer_pointer++;
		}

		do
		{
			buffer_pointer++;
		}while(buff[buffer_pointer-1]!= '\n');

		int i=0;

		/* display and save message */
		while(buff[buffer_pointer]!= '\r' && i<31)
		{
				UART0_TxChar(buff[buffer_pointer]);
				message_received[i]=buff[buffer_pointer];

				buffer_pointer++;
				i++;
		}

		buffer_pointer = 0;
		memset(buff,0,strlen(buff));
	}
	status_flag = false;
}
