Description

• In this guide, we’ll show you how to publish any sensor readings/data on a google spreadsheet using the ESP32 board.
• For example, we’ll publish temperature readings using the DS18B20 sensor to a Google spreadsheet every 10 minutes.
• Here we’ll take help using IFTTT.
• The below figure shows the overall overview of this project.

• Connect the ESP32 board to your Wi-Fi network.
• Read the temperature using the DS18B20 temperature sensor;
• Now ESP32 will communicate with the IFTTT Webhooks service to publish those readings on the spreadsheet.
• After publishing the readings, the ESP32 goes into deep sleep mode for 10 minutes.
• After 10 minutes the ESP32 wakes up.
• After waking up, the ESP32 connects to Wi-Fi, and the process repeats.

Lets start

First, open the below IFTTT link and create your account

https://ifttt.com

Type webhooks in the search bar and click on it.

Now in the webhooks click on the connect button.

Now click on create

Now press the Add buttoon

Now type webhooks in search bar

Now click on Receive web request

Give the event name here we are given temp_data

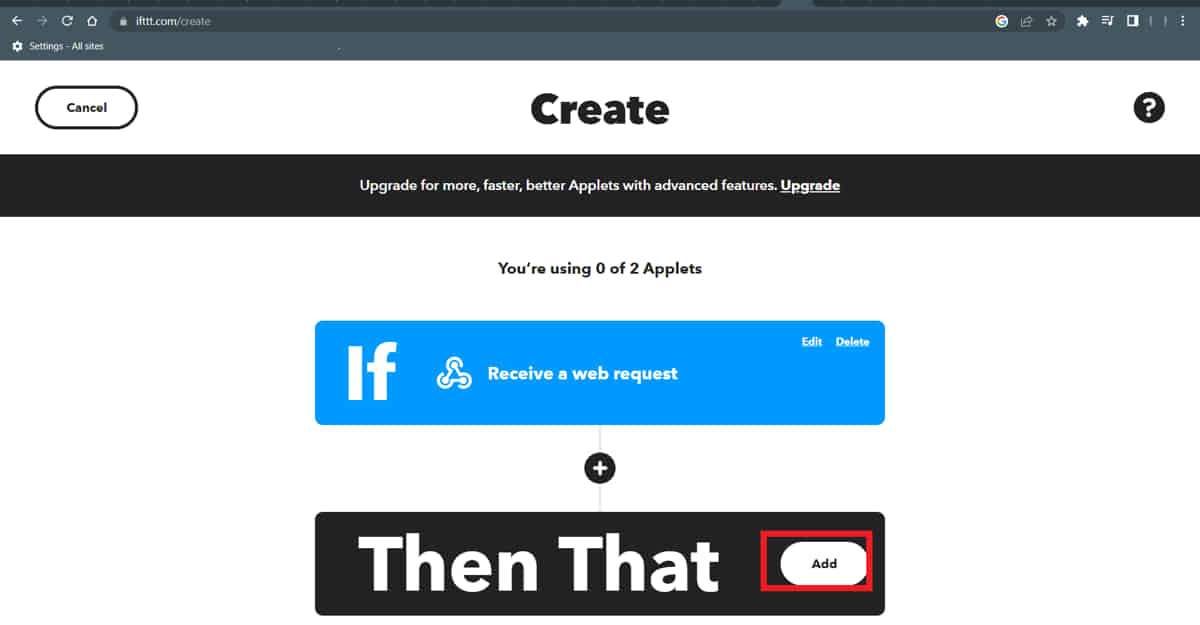

Now click on the add button again

And search the google sheet and click on it

In the first column gives the name of the sheet, in second column give the formatted row names and in last is path.

Now click on continue

Now finish it.

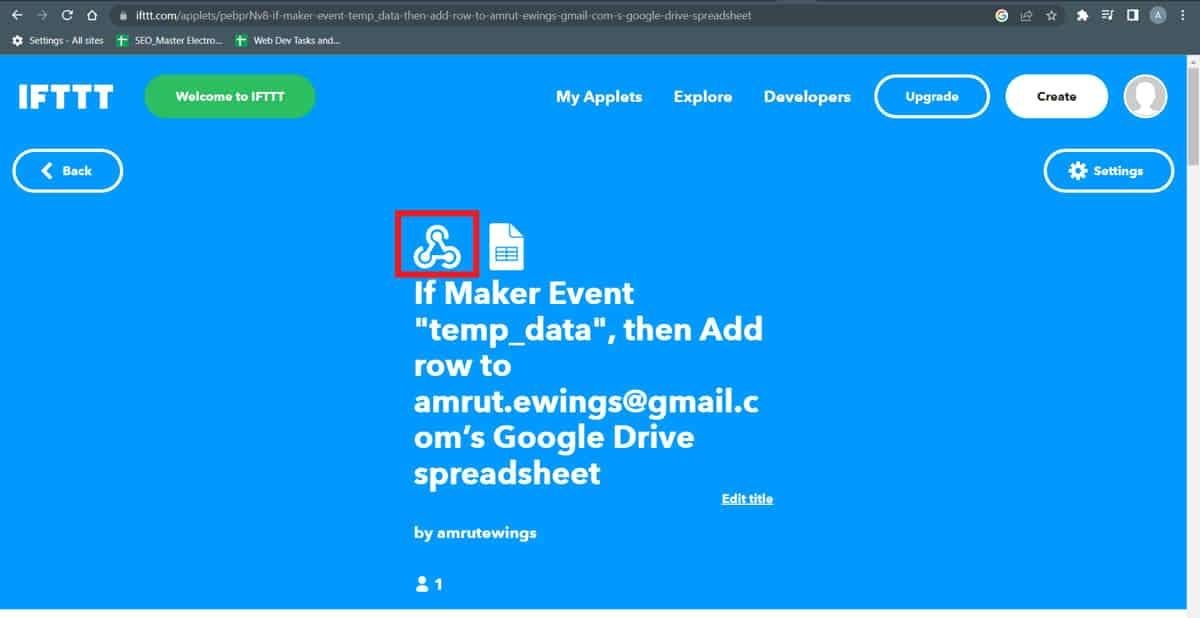

Now click on the webhooks icon and open it.

Now go to documentation

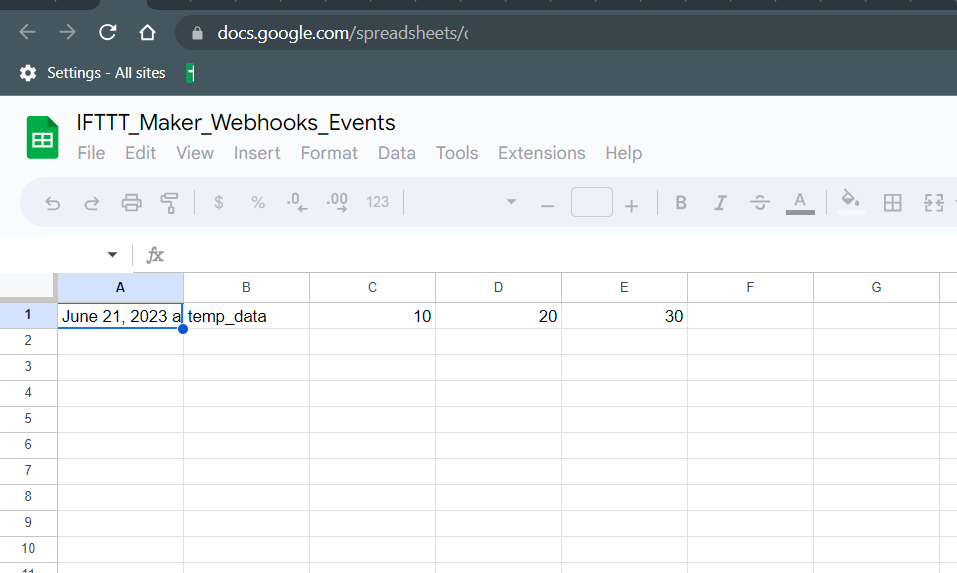

Check with your event name enter the dummy vales for values 1,2 and 3 and press the the test buttoon

Now open your drive and check with your sheet name and open it and see the data which you have send using IFTTT

DS18B20 Interfacing with ESP32:

Measure Temperature using DS18B20 and ESP32

Let’s interface the DS18B20 temperature sensor to ESP32 and display the surrounding temperature on the web server as well as on the serial monitor.

Here we are using DallasTemperature libraries for the above example. We need to install the DallasTemperature library using the Arduino Library Manager.

• Open the Arduino IDE
• Navigate to Sketch ► Include Library ► Manage Libraries…

The library Manager window will pop up. Now enter DS18B20 into the search box, and click Install on the DallasTemperature option to install version 3.9.0 or higher. As shown below image.

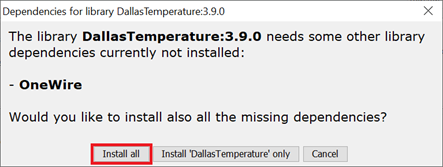

• If you don’t have the OneWire library, then this pop-up will come then click on Install all.

Code for ESP32

#include <WiFi.h>
#include <OneWire.h>
#include <DallasTemperature.h>

const char* ssid     = "SSID";
const char* password = "PASSWORD";

const char* resource = "REPLACE_WITH_YOUR_IFTTT_URL_RESOURCE";
const char* server = "maker.ifttt.com";

#define ONE_WIRE_BUS 2
OneWire oneWire(ONE_WIRE_BUS);
DallasTemperature sensors(&oneWire);

uint64_t uS_TO_S_FACTOR = 1000000;
uint64_t TIME_TO_SLEEP = 600; // sleep for 10 minutes

#define SEALEVELPRESSURE_HPA (1013.25)

void setup() {
  Serial.begin(115200);
  delay(2000);
  pinMode(2, INPUT_PULLUP);

  sensors.begin();
  initWifi();
  makeIFTTTRequest();

  esp_sleep_enable_timer_wakeup(TIME_TO_SLEEP * uS_TO_S_FACTOR);
  Serial.println("Going to sleep now");
  esp_deep_sleep_start();
}

void loop() {}

void initWifi() {
  Serial.print("Connecting to: ");
  Serial.print(ssid);
  WiFi.begin(ssid, password);

  int timeout = 10 * 4; // 10 seconds
  while(WiFi.status() != WL_CONNECTED  && (timeout-- > 0)) {
    delay(250);
    Serial.print(".");
  }
  Serial.println("");

  if(WiFi.status() != WL_CONNECTED) {
     Serial.println("Failed to connect, going back to sleep");
  }

  Serial.print("WiFi connected in: ");
  Serial.print(millis());
  Serial.print(", IP address: ");
  Serial.println(WiFi.localIP());
}

void makeIFTTTRequest() {
  Serial.print("Connecting to ");
  Serial.print(server);

  WiFiClient client;
  int retries = 5;
  while(!!!client.connect(server, 80) && (retries-- > 0)) {
    Serial.print(".");
  }
  Serial.println();
  if(!!!client.connected()) {
    Serial.println("Failed to connect...");
  }

  Serial.print("Request resource: ");
  Serial.println(resource);

  sensors.requestTemperatures();
  float tempC = sensors.getTempCByIndex(0);
  //Serial.println(tempC);

  // Temperature in Celsius
  String jsonObject = String("{\"value1\":\"") + sensors.getTempCByIndex(0) + "\",\"value2\":\"" + ""
                      + "\",\"value3\":\"" + "" + "\"}";

  client.println(String("POST ") + resource + " HTTP/1.1");
  client.println(String("Host: ") + server);
  client.println("Connection: close\r\nContent-Type: application/json");
  client.print("Content-Length: ");
  client.println(jsonObject.length());
  client.println();
  client.println(jsonObject);

  int timeout = 5 * 10; // 5 seconds
  while(!!!client.available() && (timeout-- > 0)){
    delay(100);
  }
  if(!!!client.available()) {
    Serial.println("No response...");
  }
  while(client.available()){
    Serial.write(client.read());
  }

  Serial.println("\nclosing connection");
  client.stop();
}

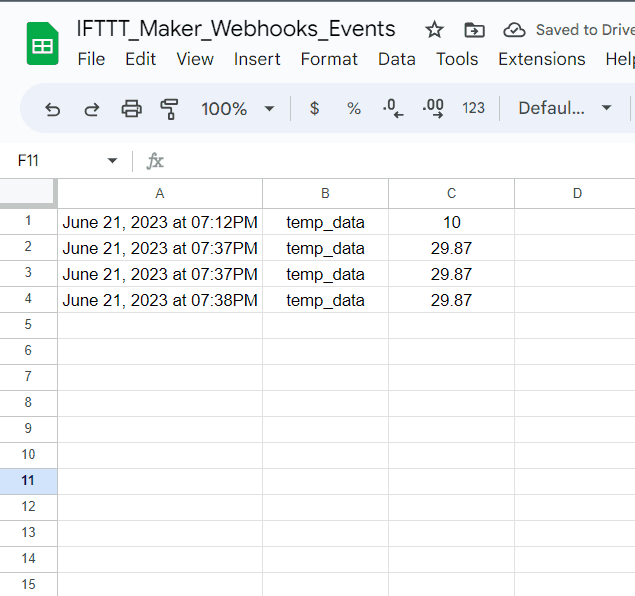

Output

Lets explain the code

Add the required librarys

#include <WiFi.h>
#include <OneWire.h>
#include <DallasTemperature.h>

Add your SSID and Password in below

const char* ssid     = "SSID";
const char* password = "PASSWORD";

Replace with your unique IFTTT URL resource

const char* resource = "REPLACE_WITH_YOUR_IFTTT_URL_RESOURCE";
const char* server = "maker.ifttt.com";

Set the pin number for DS1307 sensor

#define ONE_WIRE_BUS 2
OneWire oneWire(ONE_WIRE_BUS);
DallasTemperature sensors(&oneWire);

Conversion factor for micro seconds to seconds

uint64_t uS_TO_S_FACTOR = 1000000;

Sleep for 10 minutes (600 seconds)

uint64_t TIME_TO_SLEEP = 600;
#define SEALEVELPRESSURE_HPA (1013.25)

Set the baud rate to 115200

Serial.begin(115200);

Begin the temeparature sensor using

sensors.begin();

request to DS18B20 sensor to get the temperature reading

sensors.requestTemperatures();
float tempC = sensors.getTempCByIndex(0);

Now publish the temperature on your sheet.

String jsonObject = String("{\"value1\":\"") + sensors.getTempCByIndex(0) + "\",\"value2\":\"" + ""
                      + "\",\"value3\":\"" + "" + "\"}";
